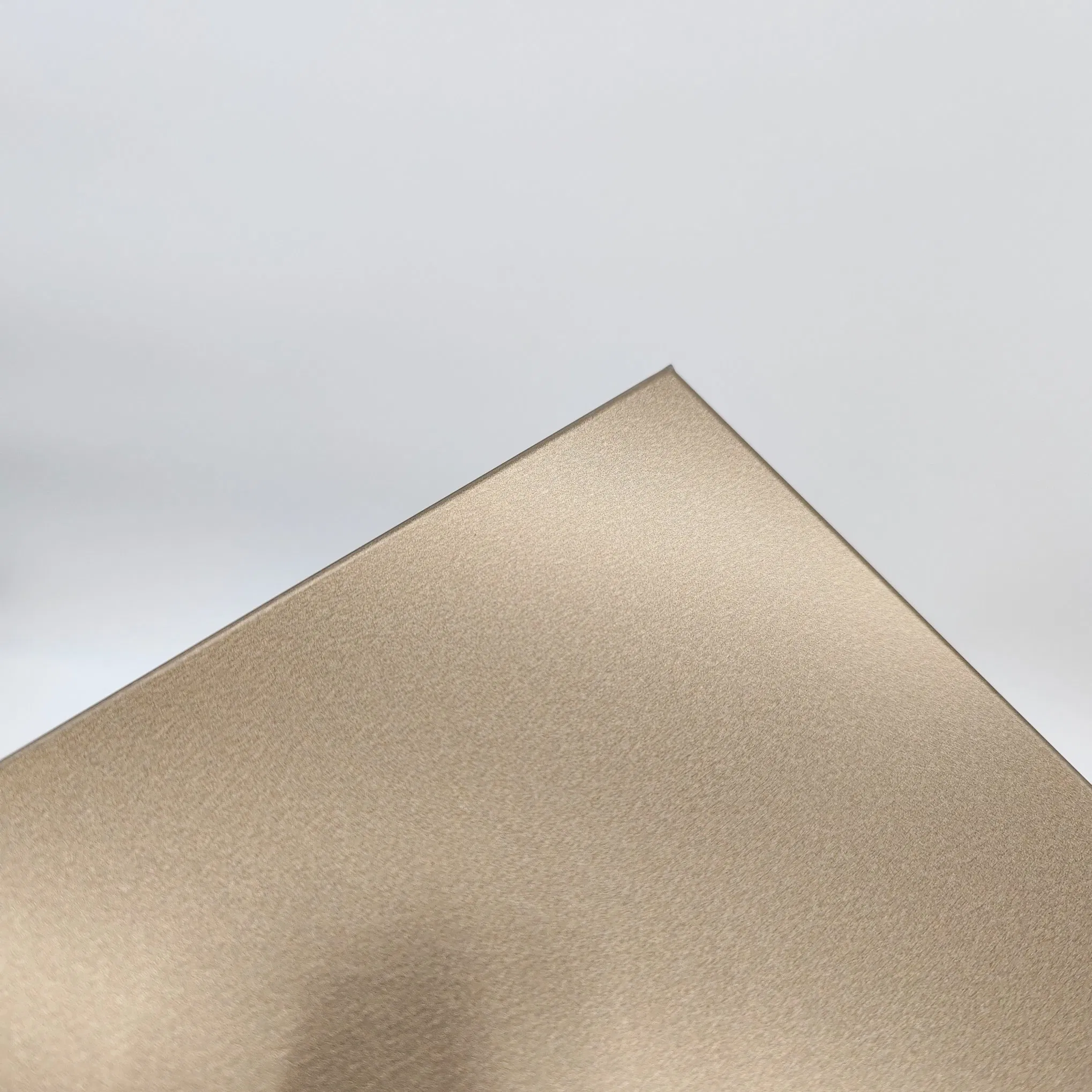

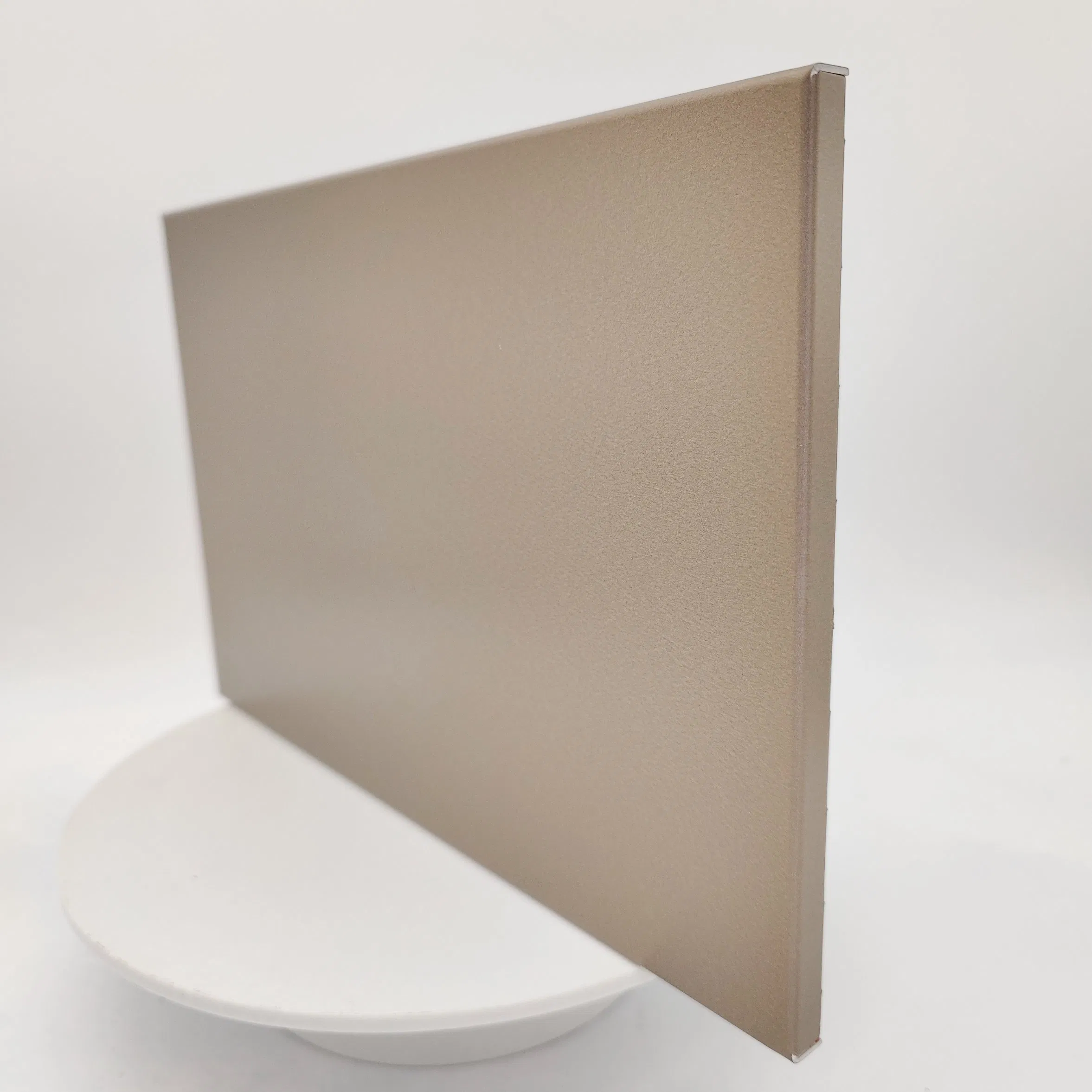

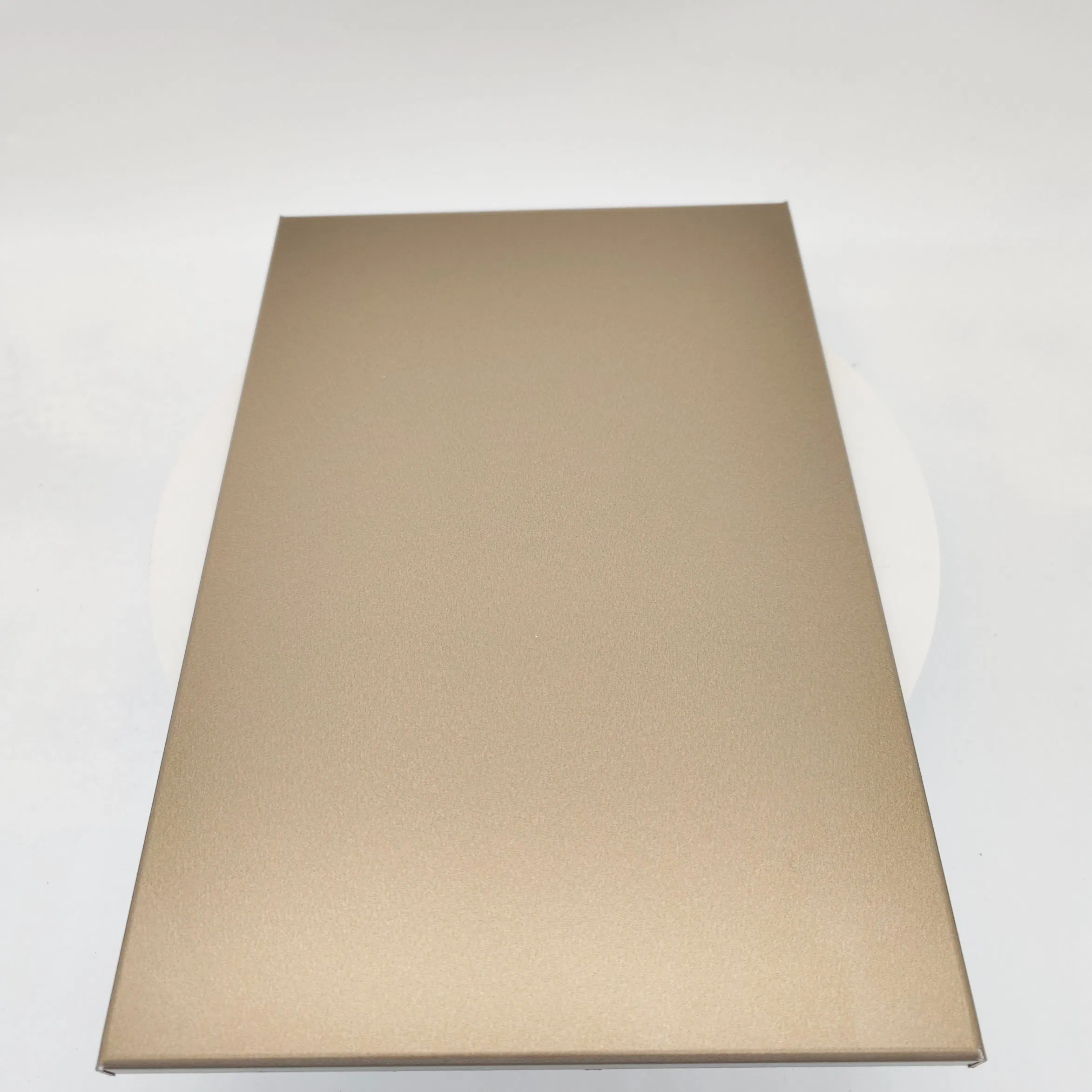

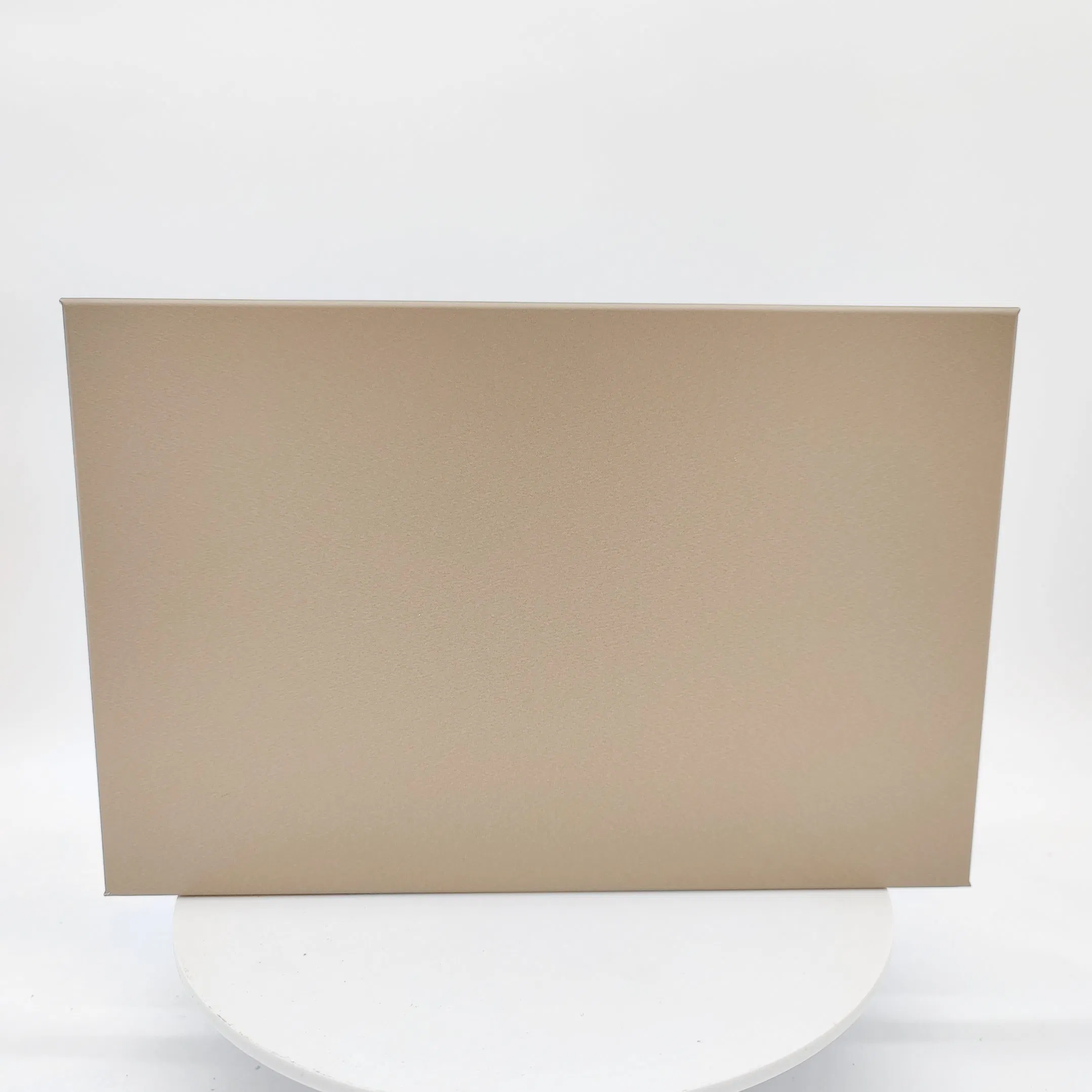

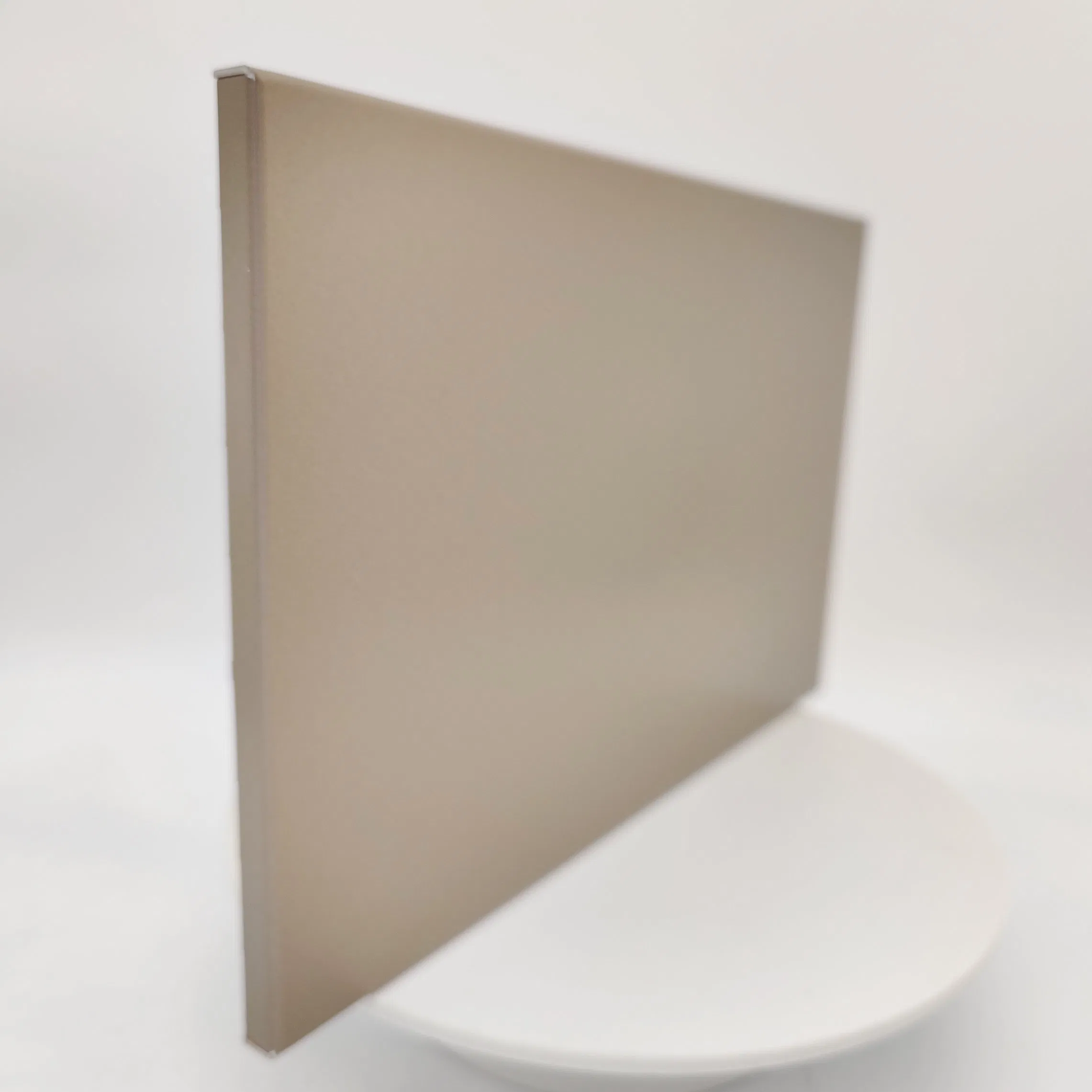

Stone Veneer Strong Aluminum Honeycomb Composite Sandwich Panel for Interior Feature Walls, Lightweight Marble Alternative Building Construction Material

Customization: Available
After-sales Service: Onsite Training, Return and Replacement
Warranty: 5 Years

Product Description

Overview

FeatureEnvironmental, Fireproof, Light Weight, Metal Panel
Fire Rating1
CertificationISO9001
CustomizedCustomized
Surface TreatmentPE/PVDF/ Mill Finish/Anodised
Edge TreatmentSealed/Unsealed
EdhesiveEpoxy
ColorRal Color, Wood/Stone Texture
ShapeFlat, Curving, Carved, etc.
AdvantagesLight Weight/High Strength/Fireproof/Anacoustic
MOQ200m2
Transport PackageExport Packages: Protective Film, Plywood Crate
Specification1220*2440mm, 2000*12000mm, custom made
HS Code7616999000
Production Capacity50000sqm Per Month
Aluminum honeycomb panels

Aluminum honeycomb panels are lightweight composite materials made of two aluminum sheets bonded to a honeycomb-shaped core. They offer high strength-to-weight ratio, rigidity, and good thermal and acoustic insulation. Commonly used in architecture, transportation, and aerospace, they provide structural efficiency and aesthetic appeal.

Parameter Description

Product NameAll-aluminum honeycomb panel
Regular size1220×2440mm,1200×2800 (customization supported)
Thickness range7mm ~ 30mm
Panel thickness0.7mm ~ 2mm aluminum plate
Honeycomb core specificationsSide length 3mm~10mm
Aluminum foil thickness0.035mm ~ 0.1mm
Panel material3003/5052 aluminum alloy
Surface treatmentFilm/fluorocarbon spraying/powder spraying/anodizing, etc.
Fireproof gradeA2/B1 (according to GB8624 standard)

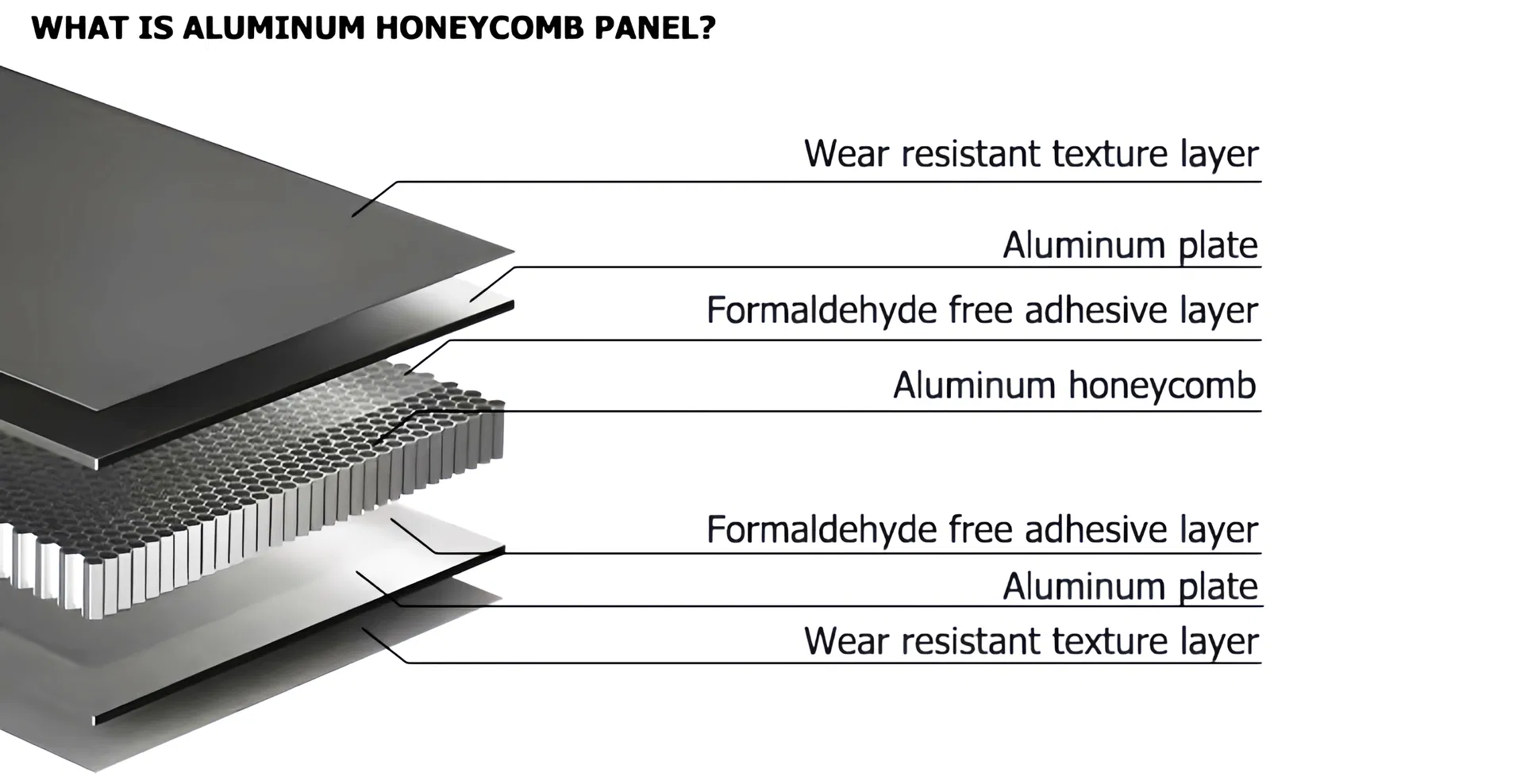

Structural composition

Surface technology: film lamination, spraying, roller coating
Panel material: aluminum plate (commonly 0.7mm ~ 2mm thick)
Core material: aluminum honeycomb core (hexagonal structure)
Backboard material: aluminum plate
Bonding technology: aviation-grade adhesive, hot pressing composite technology

Key features

Lightweight and high strength
Fireproof and moisture-proof
Sound insulation and heat insulation
Smooth surface
Environmentally friendly and healthy
High cost performance
Customizable

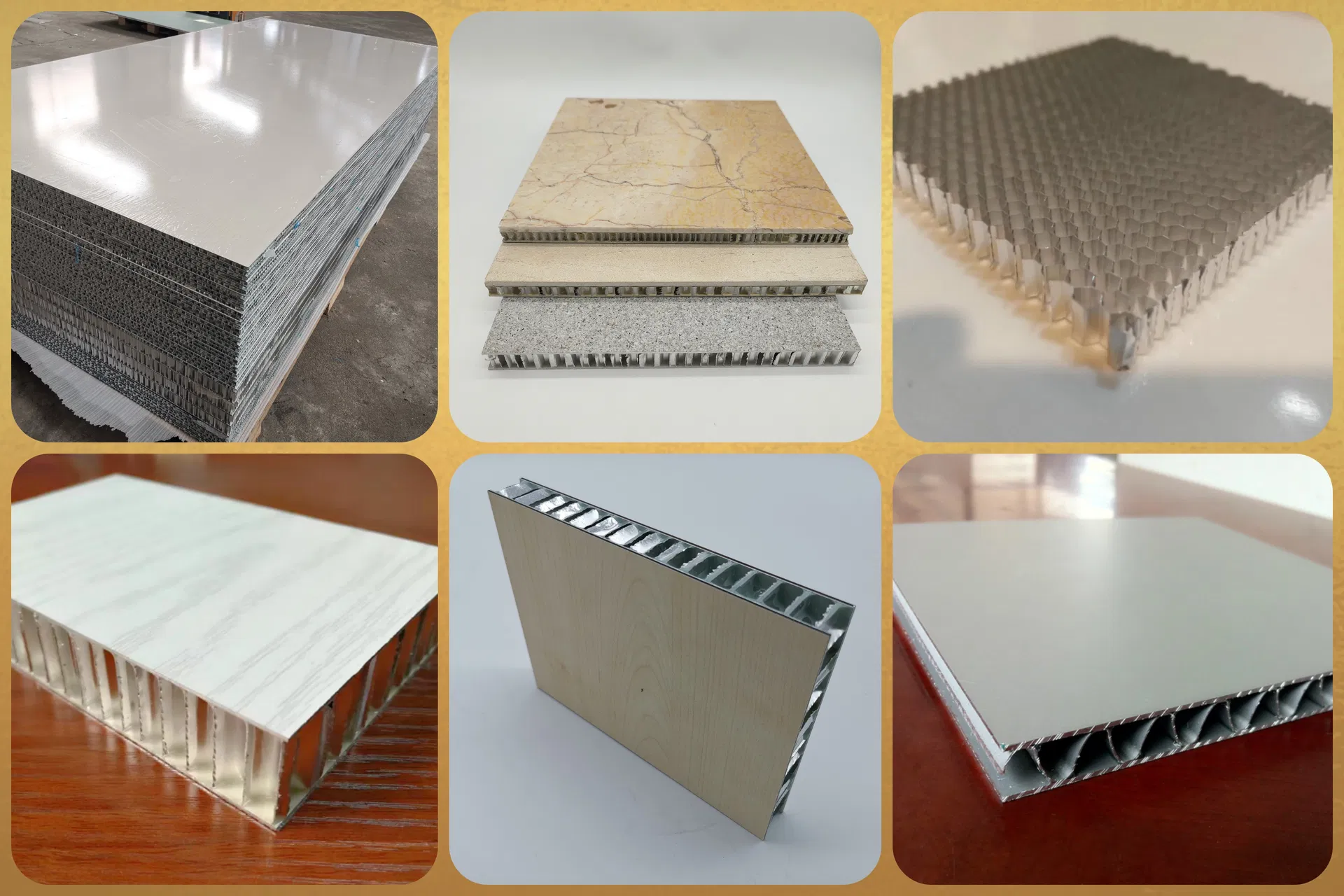

Honeycomb Panel View 1
Honeycomb Panel View 2
Honeycomb Panel View 3
Honeycomb Panel View 4

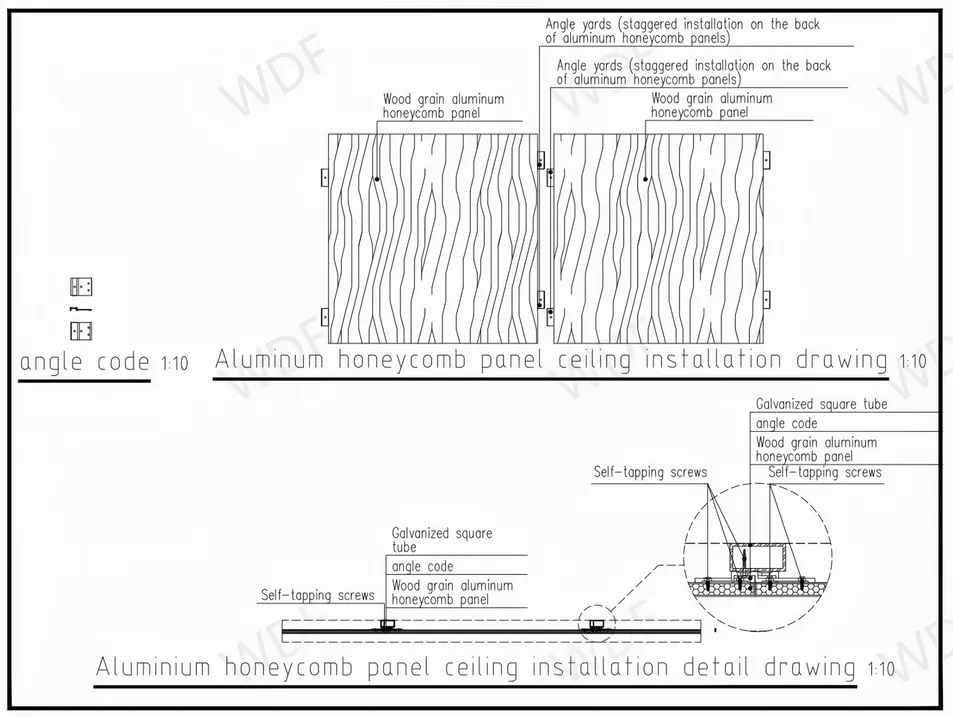

Installation Method

Aluminum honeycomb panels are suitable for installation in dry hanging systems and exposed/dark keel structures. Supporting aluminum alloy hangers, pressure strips, sealants and other auxiliary materials are provided. It can also be installed by leveling the steel structure and fixing the corner code; the third method is to directly glue the wall after leveling.

Support professional installation guidance and drawing docking, engineering customers please contact for docking solutions.

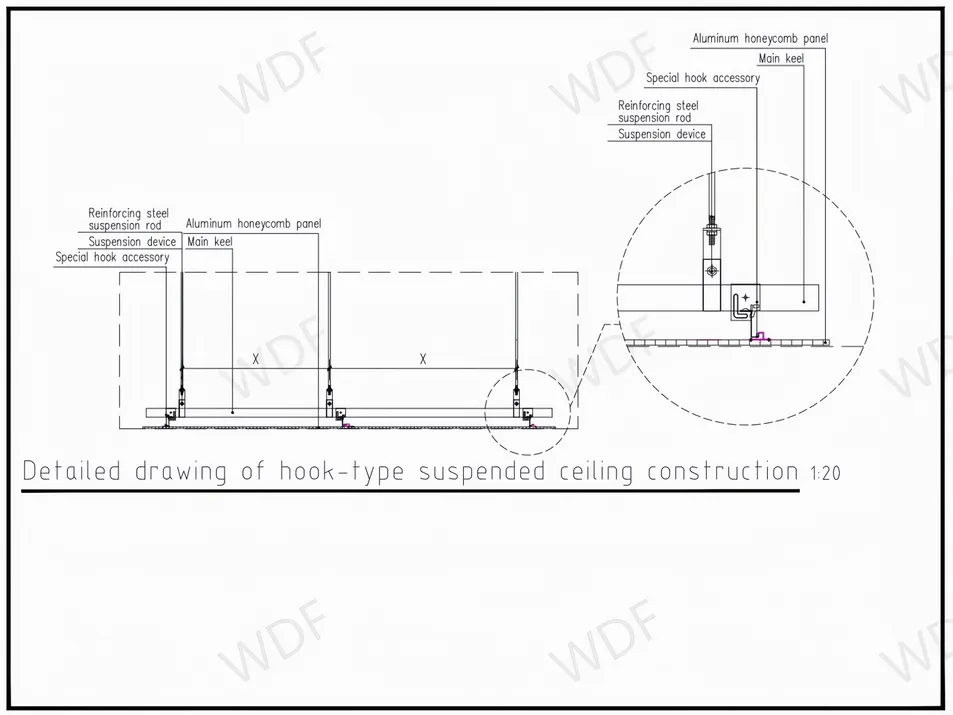

Installation Detail 1
Installation Detail 2

Related Products

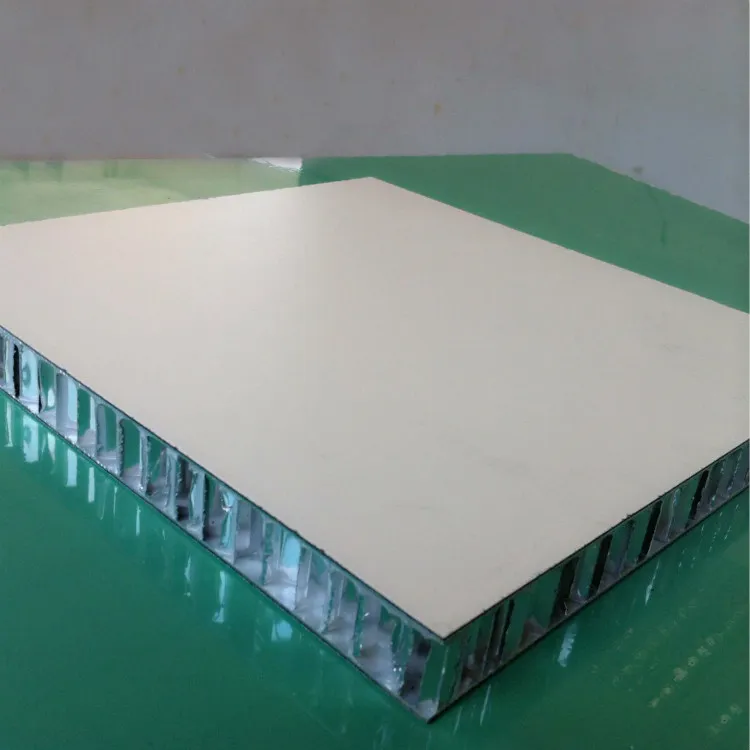

Aluminum Honeycomb Panel
Aluminum Honeycomb Panel

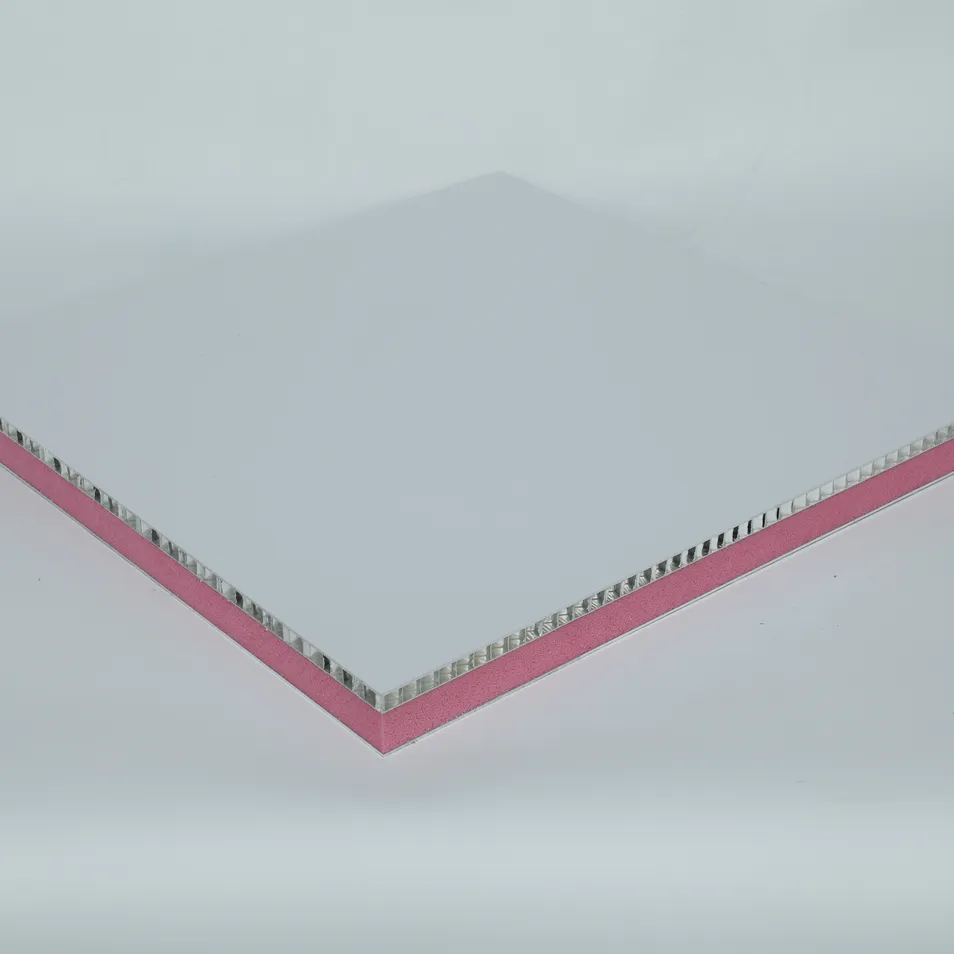

Alu EPS Panel
Alu EPS Panel

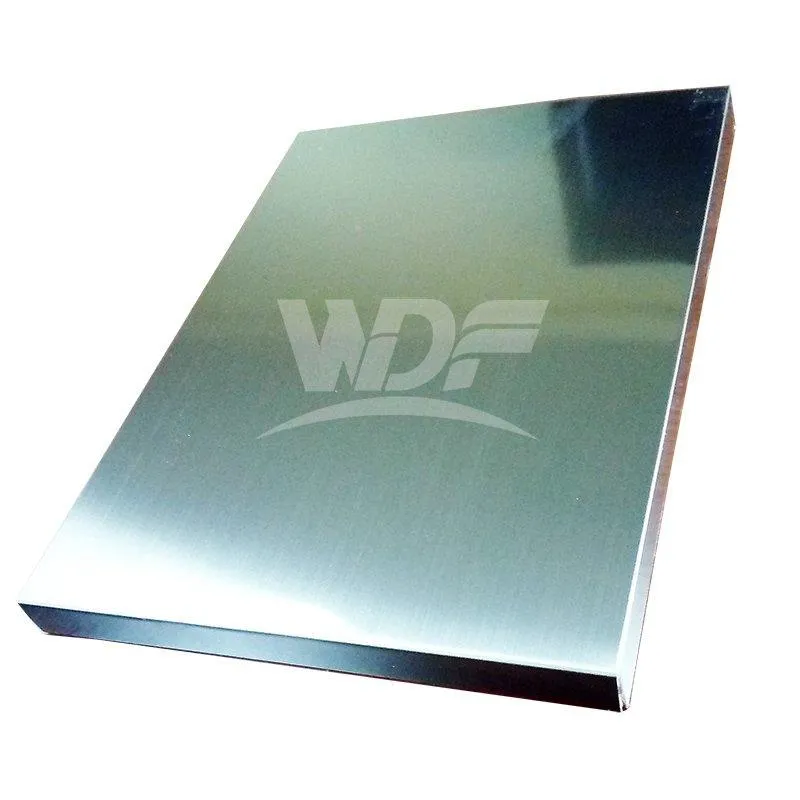

Stainless Steel Honeycomb Panel
Stainless Steel Honeycomb Panel

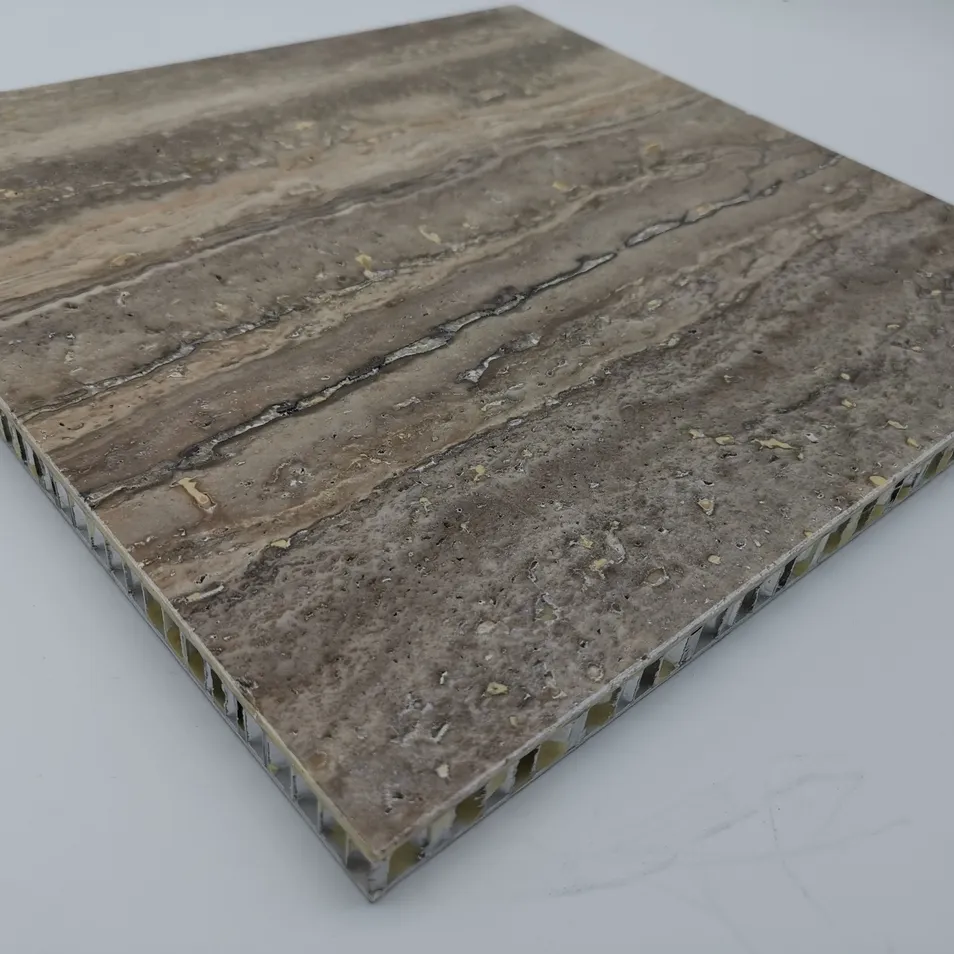

Stone Aluminium Honeycomb Panel
Stone Aluminium Honeycomb Panel

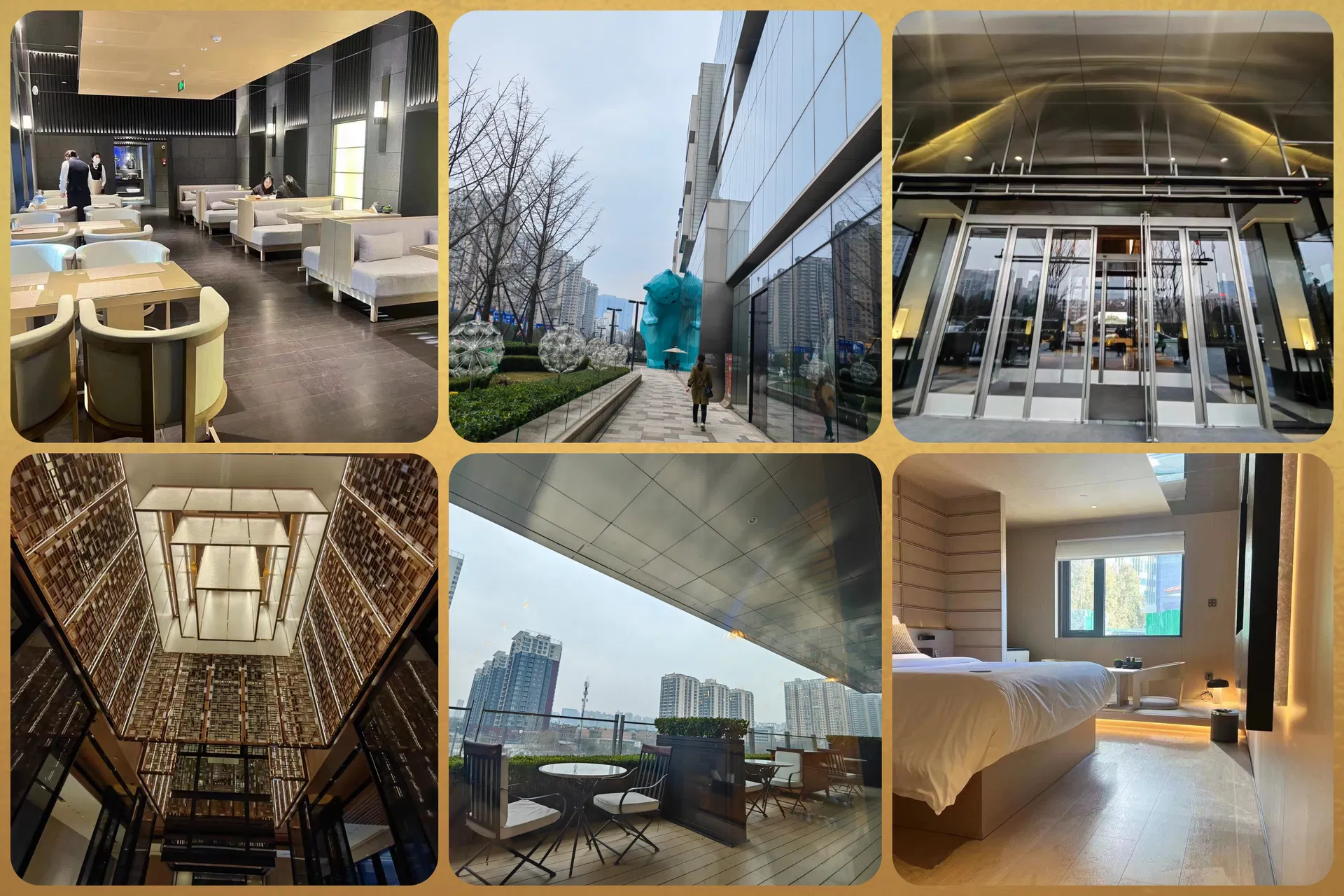

Project Presentation

Project Display

Company Profile

Factory Overview

Our company is a specialized high-tech enterprise engaged in new composite materials research, development, production, and sales. The factory covers an area of more than 30,000 square meters, with a building area of more than 20,000 square meters.

Using advanced composite equipment and technology, we specialize in the production of aluminum honeycomb cores, panels, aluminum-plastic plates, glass fiber reinforced plastic honeycomb panels, and stone material compound plywood. Our products are widely used in building decoration, elevators, vehicles, and ship interiors. With a perfect scientific management system, our products are exported to the United States, Canada, Germany, France, Britain, Australia, Singapore, the Middle East, and many other regions.

Certifications & Exhibition

Certification
Exhibition

Packaging & Shipping

Packaging

Frequently Asked Questions

What's the lead time for orders?
Standard models ship in 7-10 days; customized units require 15-20 days.
What are the common specifications of your aluminum honeycomb panels?
Our standard panel thicknesses include 7mm, 9mm, 10mm, 15mm, and 20mm, with regular sizes like 1220x2440mm. Customization is available for dimensions, surface materials, colors, and thickness.
What are the main applications of aluminum honeycomb panels?
Widely used in building curtain walls, interior wall cladding, ceilings, ship interiors, rail transit, furniture panels, and display cabinets due to their lightweight and fire-resistant properties.
What is your Minimum Order Quantity (MOQ)?
The MOQ for standard products is 200 square meters. We can provide small samples for quality inspection.
Do you offer OEM or ODM services?
Yes, we provide full OEM/ODM support. We can manufacture according to your drawings, specifications, or branding requirements.
Are the panels fireproof?
Yes, our aluminum honeycomb panels reach A2/B1 fireproof grades according to GB8624 standards.
