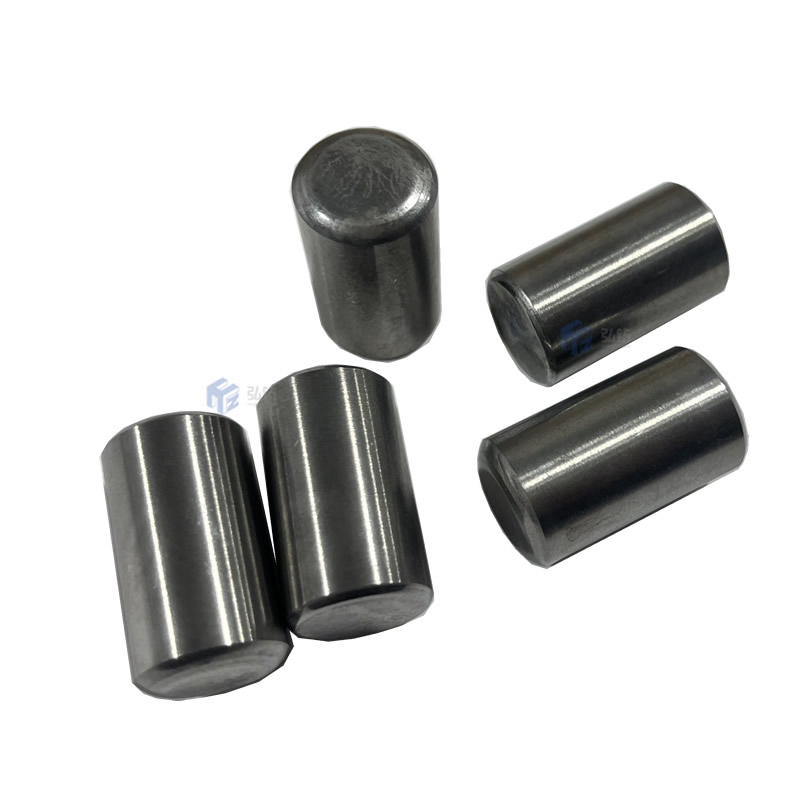

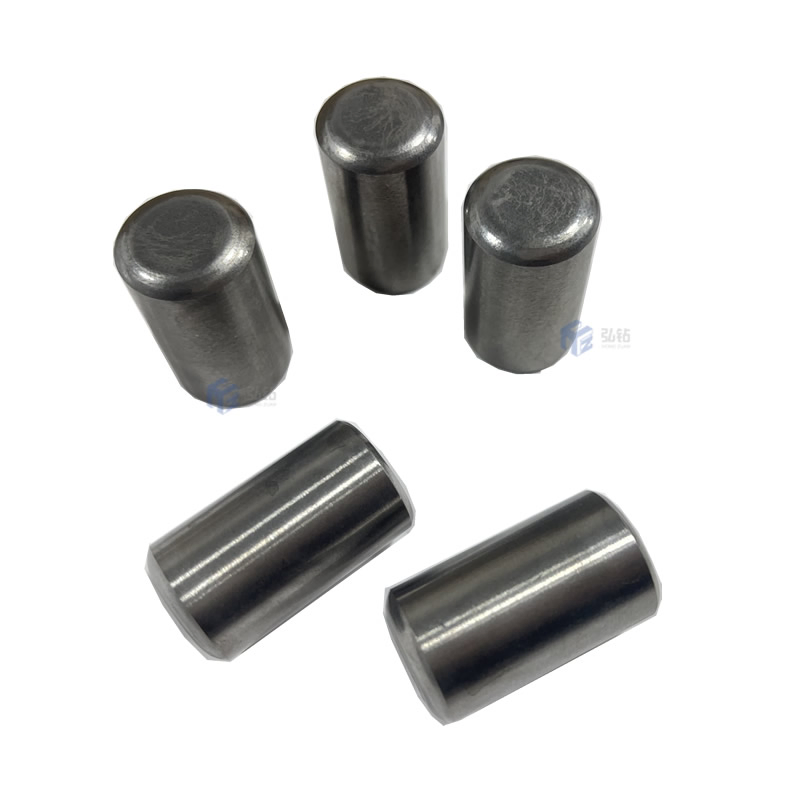

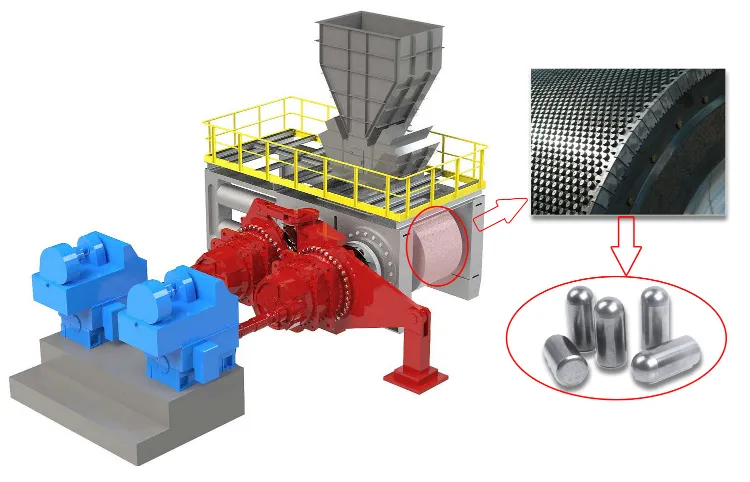

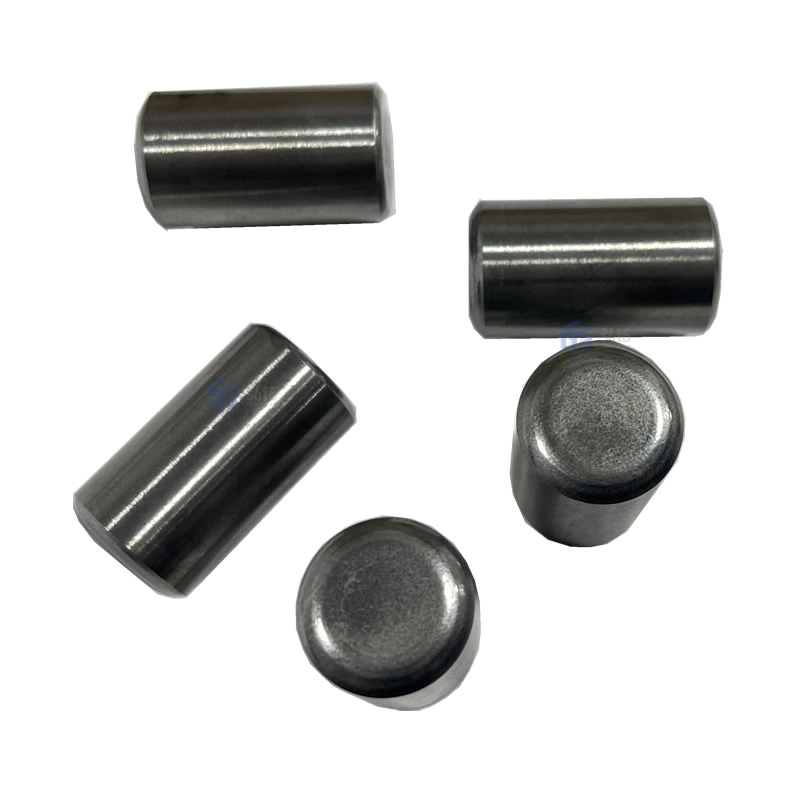

High Pressure Grinding Roller is an energy-efficient crushing equipment of new technologies. High performance of carbide stud extends the life of High-Pressure-Grinding-Roller. We provide quality carbide studs with good wear resistance and high compressive strength, which can satisfy the requirements of different conditions.

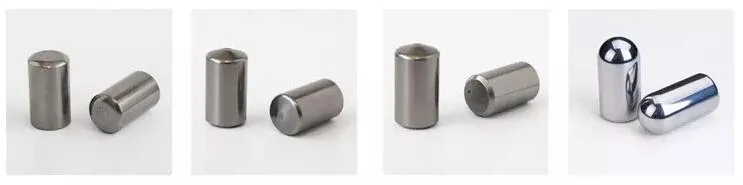

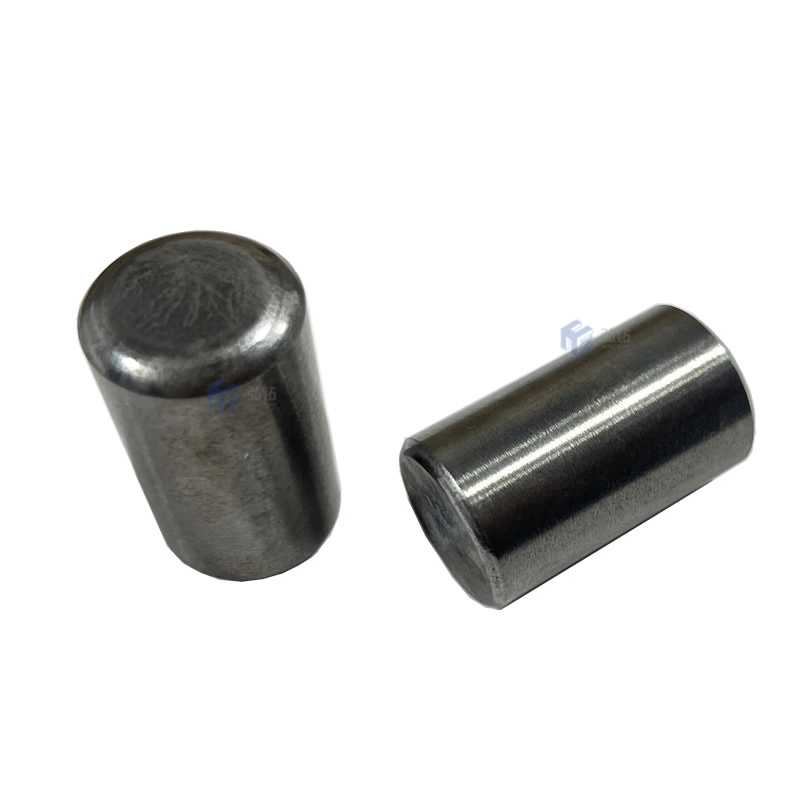

Our HPGR bits are made with typical tungsten carbide, which ensure long wear life and consistent quality. This means lower operating costs, less down time for machine maintenance, and a more predictable wear life. Close attention is paid to quality control ensuring our bits fit properly. Our replacement HPGR bits are guaranteed to meet or exceed the OEM specification for fit, material grade and performance.

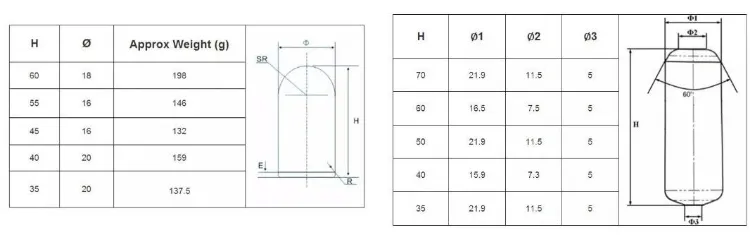

| Height (H) | Diameter (φ1) | Diameter (φ2) | Diameter (φ3) |
|---|---|---|---|
| 70 | 21.9 | 11.5 | 5 |
| 60 | 16.5 | 7.5 | 5 |
| 50 | 21.9 | 11.5 | 5 |
| 40 | 15.9 | 7.3 | 5 |
| 35 | 21.9 | 11.5 | 5 |

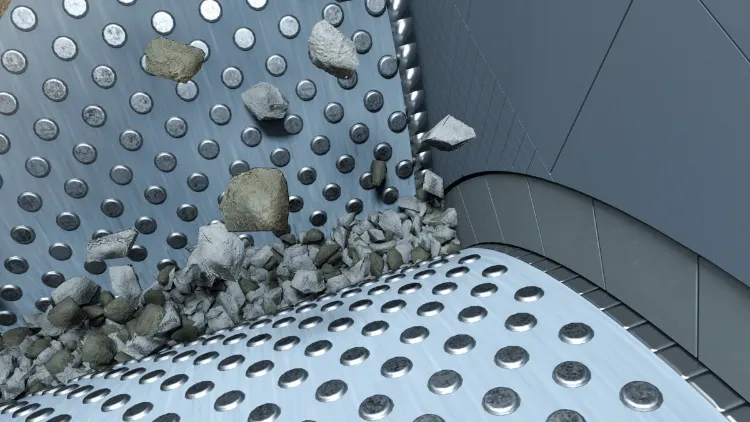

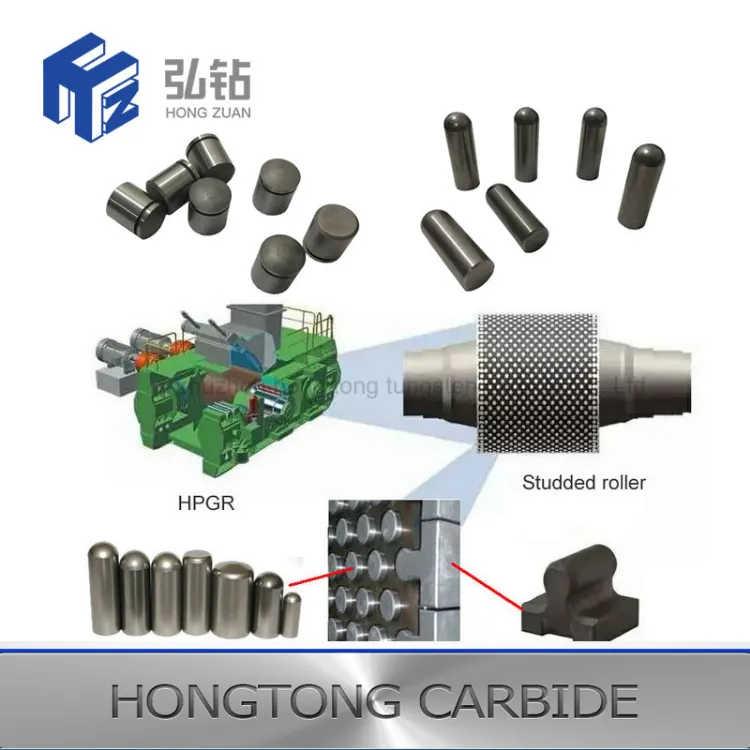

HPGR technology working principle is that two counter-rotating grinding rolls expose a column of material to high pressure, which is distributed across the gap between the rolls. Inter particle comminution is the HPGR specific grinding process in which material particles are crushed and ground within the compressed material bed and not by contact with the roll surface.
| Grade | Physical Properties | Chemical Composition(%) | ||||
|---|---|---|---|---|---|---|
| Hardness (HRA) | Bending Strength (>=N/mm²) | Density (g/cm³) | Coercivity (kA/m) | Cobalt | Carbon | |
| YG15C | 85.0~86.5 | 2500 | 13.90~14.10 | 4.5~6.5 | 14.7~15.3 | 4.90~5.50 |
| YG20 | 86.0~87.5 | 2450 | 13.40~13.60 | 8.0~11.0 | 19.7~20.4 | 4.50~4.80 |
| YG15 | 87.0~88.5 | 2800 | 13.95~14.15 | 7.0~10.0 | 14.1~14.8 | 4.95~5.60 |
| HJ650 | 87.8~90.0 | 2950 | 13.95~14.15 | 8.0~10.5 | 14.5~14.9 | - |
| HJ20 | 85.8~87.2 | 2600 | 13.87~14.17 | 5.8~8.0 | 14.8~15.2 | - |
As pre-grinding equipment before ball mill or form complex grinding system with ball mill in the field of mineral separation, HPGR crushers are widely used in grinding cement clinker, limestone, bauxite, and iron ore.
We produce a wide range of carbide products including: Tungsten Carbide Balls, Agriculture wear parts, Carbide tips, HPGR Stud pins, Brazed Inserts, Gripper Pads, Buttons, VSI Bars, Rods, Strips, PDC substrates, and various customized components.
