Luxurious Marble Granite Slate Sandstone Honeycomb Core Panels
Luxurious Marble Granite Slate Sandstone Honeycomb Core Panels
Luxurious Marble Granite Slate Sandstone Honeycomb Core Panels
Luxurious Marble Granite Slate Sandstone Honeycomb Core Panels
Luxurious Marble Granite Slate Sandstone Honeycomb Core Panels
1 / 5
Luxurious Marble Granite Slate Sandstone Honeycomb Core Panels
Luxurious Marble Granite Slate Sandstone Honeycomb Core Panels
Luxurious Marble Granite Slate Sandstone Honeycomb Core Panels
Luxurious Marble Granite Slate Sandstone Honeycomb Core Panels
Luxurious Marble Granite Slate Sandstone Honeycomb Core Panels

Luxurious Marble Granite Slate Sandstone Honeycomb Core Panels

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Basic Information

Model NO.SHP175
FunctionAnti-Static, Antibacterial, Fireproof, Mould-Proof
Aperture8mm (Customizable)
LevelB
ApplicationInterior & Exterior Decoration, Furniture and Table
Standard Size1220*2440mm
Surface MaterialGranite, Marble, Limestone, Slate and Sandstone
AdhesiveEpoxy Resin
Total Thickness15/20/25/50mm
PackageWooden Case
SpecificationSGS, ISO
Capacity100,000 Square Meters Per Month
★

Product Description

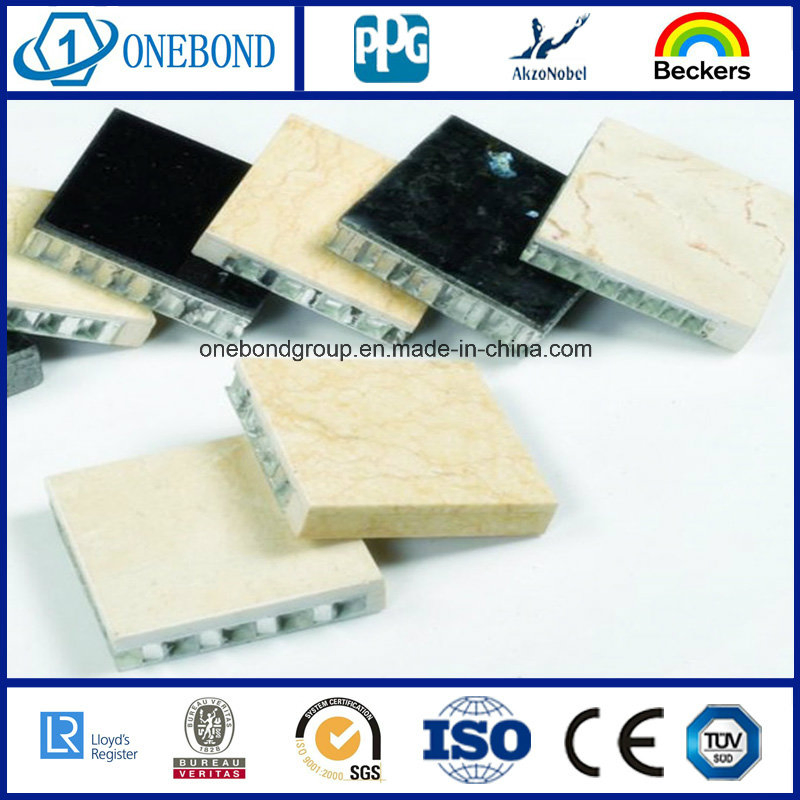

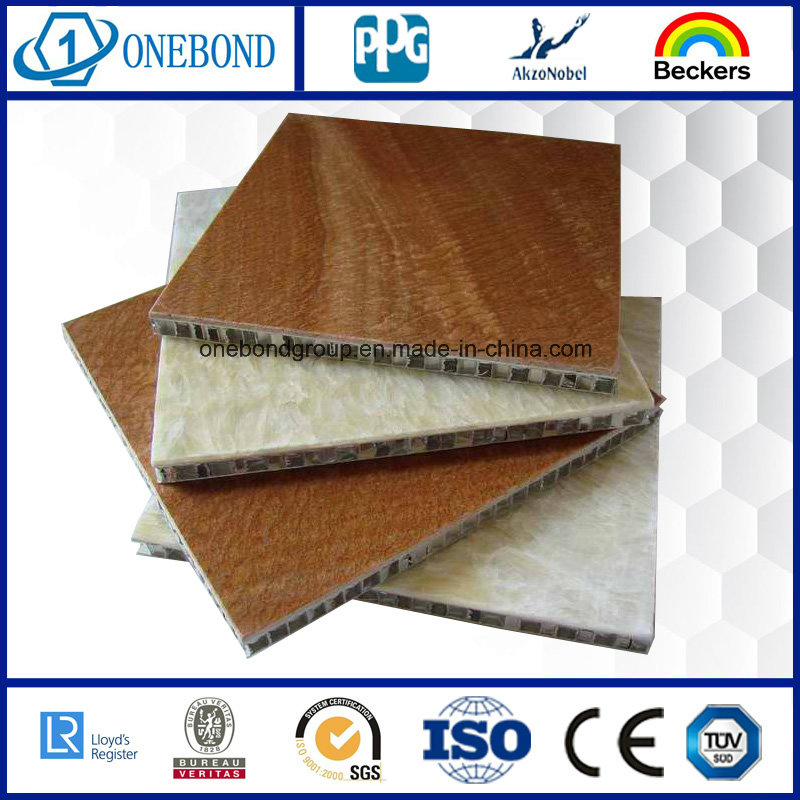

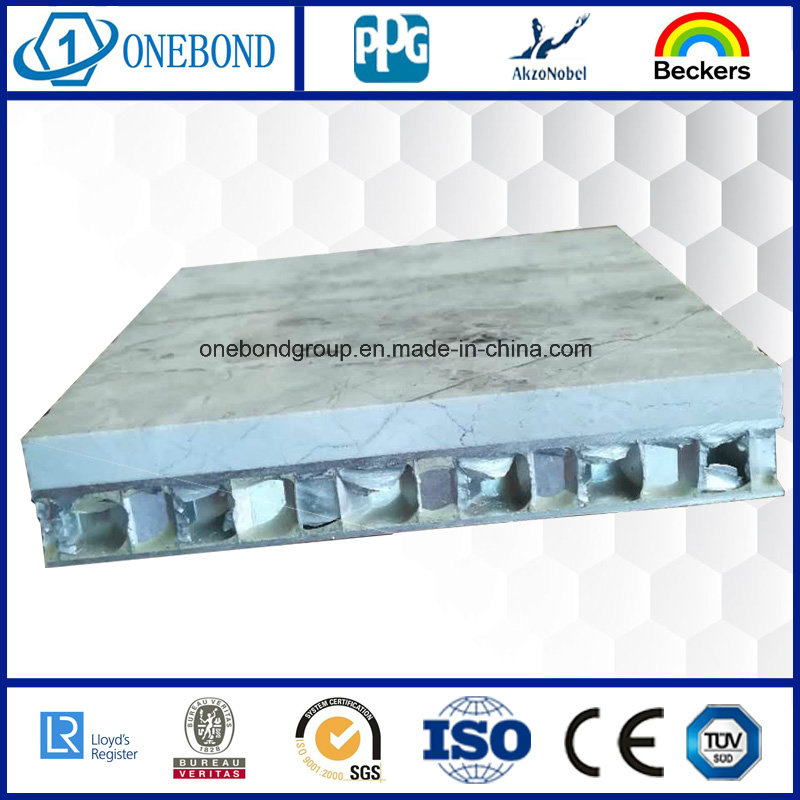

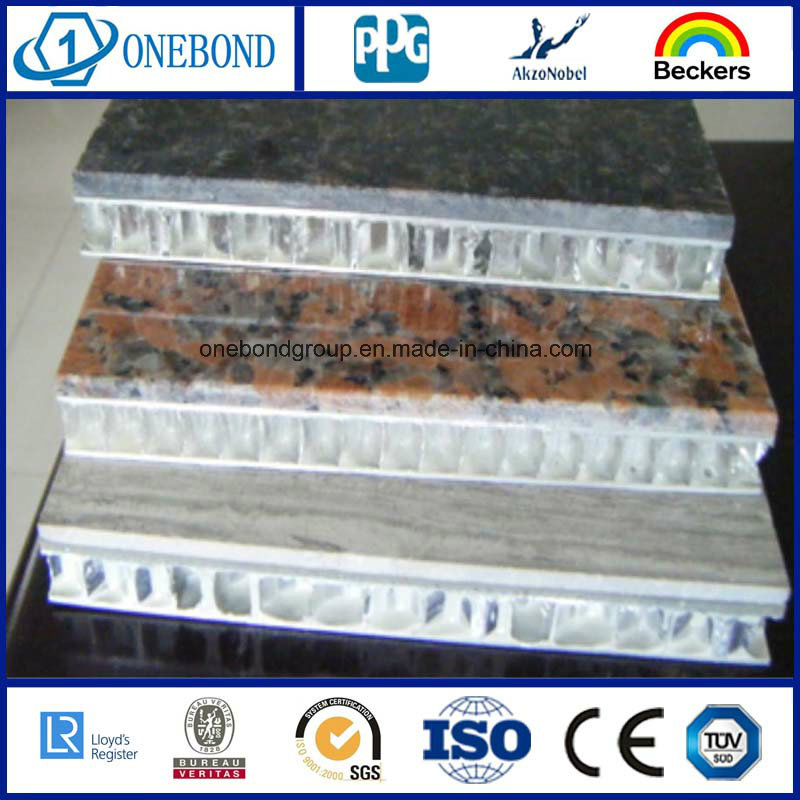

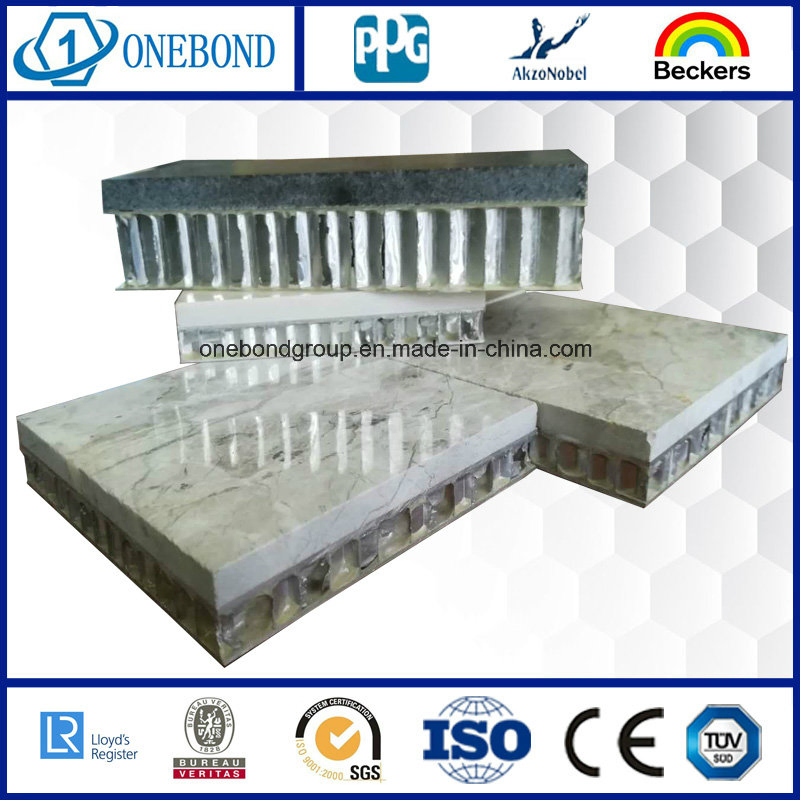

Stone honeycomb panels are natural stone composite panels comprised of a thin stone veneer and an aluminum honeycomb backing which is sandwiched between impervious, high-strength, fiber-reinforced epoxy skin. These panels can feature almost any stone, including granite, marble, limestone, slate and sandstone. They have been used extensively for exterior, interior and renovation applications.

Major Benefits

  • Lighter: One-fifth the weight of dimensional stone, saving installation time and labor.
  • Stronger: Can resist 60 times more impact than 3cm thick granite.
  • Impervious to water: Fiber-reinforced epoxy skin creates a complete waterproof barrier.
  • Tested: Thoroughly tested for acid freeze-thaw, air/water filtration, structural load, and fire resistance.

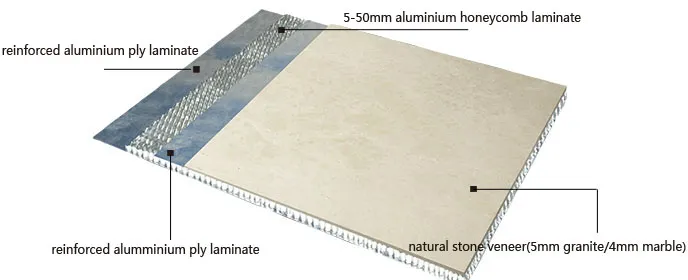

Luxurious Stone Honeycomb Core Panels
⚙

Technical Specifications

Raw Material Details

  • Aluminum top panel: Thickness 3-5mm
  • Aluminum bottom panel: Thickness 0.5-1.0mm
  • Aluminum honeycomb: Model 3003H18 hexagon foil, 0.04-0.07mm thick, side length 5-6mm
  • Adhesives: Bi-component polymeric epoxide membrane and modified epoxy resins

Stone Honeycomb Panel Specification

Component Specification
Front Sheet4-6mm natural stone veneer
Reverse Panel10/15/20/25mm aluminum honeycomb panel
Total Thickness15/20/25/50mm
Standard Size1220*2440mm & 1500*3000mm
Weight15.5kg/m2 (for 20mm)
AdhesiveEpoxy resin (stable between -40°C to 150°C)

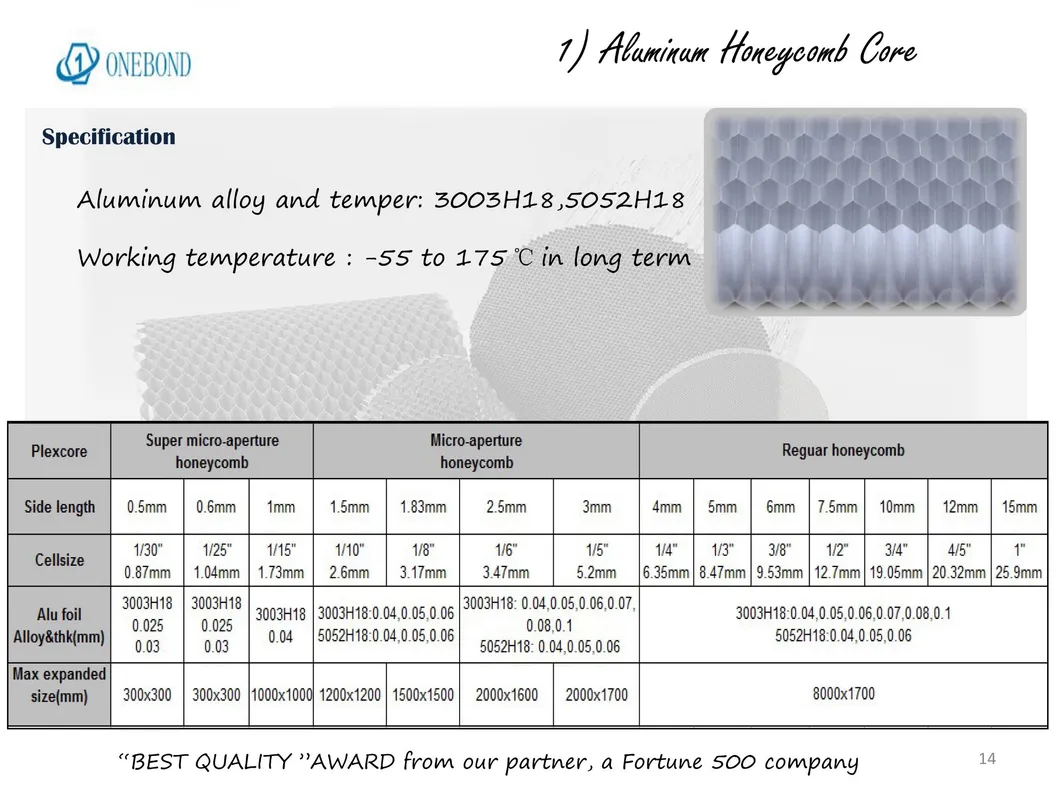

Aluminum Honeycomb Core Specification
✔

Properties & Applications

Product Property

  • Light specific gravity & high rigidity.
  • Excellent sound and heat insulation.
  • Fireproofing and quakeproof performance.
  • Elegant smooth appearance with color variety.
  • Fine decoration effect, easy and rapid installation.

Application Areas

  • Building exterior and curtain walls.
  • Renovation additions for old buildings.
  • Interior walls, ceilings, and bathrooms.
  • Shop door decoration & signboards.
  • Advertisement display platforms.
📷

Quality Control & Packing

Certification

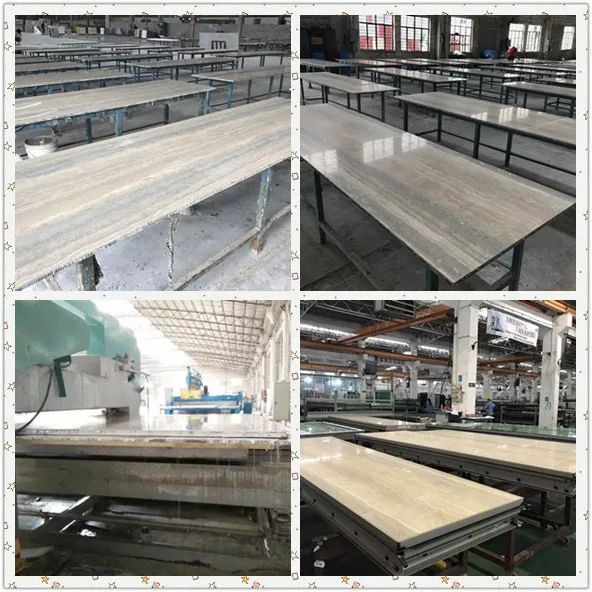

Factory Production

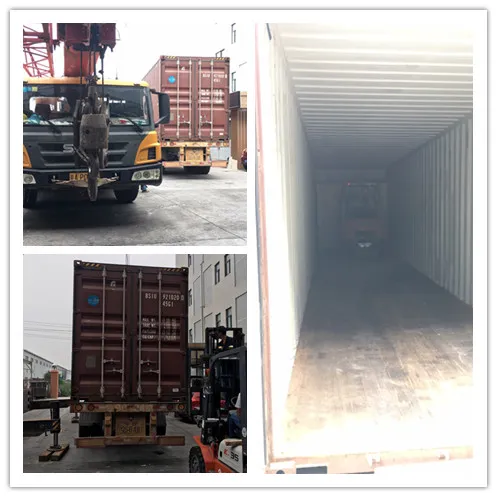

Professional Packing
?

Frequently Asked Questions

Are you a trading company or manufacturer?
We are a professional manufacturer with our own factory and export capabilities, allowing us to provide competitive pricing and direct quality control.
How many years of experience do you have in honeycomb panel production?
We have 20 years of experience in producing honeycomb panels, supported by a professional team that assists from design through to the finished product.
What is the typical delivery time for an order?
The general delivery time is 10-15 days, provided that the raw materials are currently in stock.
Do you provide samples of your stone honeycomb panels?
Yes, we can offer samples free of charge; however, the customer is responsible for the freight or shipping costs.
What are your standard payment terms?
For orders under 1000 USD, 100% in advance. For orders over 1000 USD, we require 30% T/T in advance with the balance due before shipment. LC at sight is also accepted.
Why should clients choose your honeycomb panels over traditional stone?
Our panels offer a unique combination of lightweight properties, superior impact resistance, and a waterproof barrier, making them more durable and easier to install than solid stone systems.
