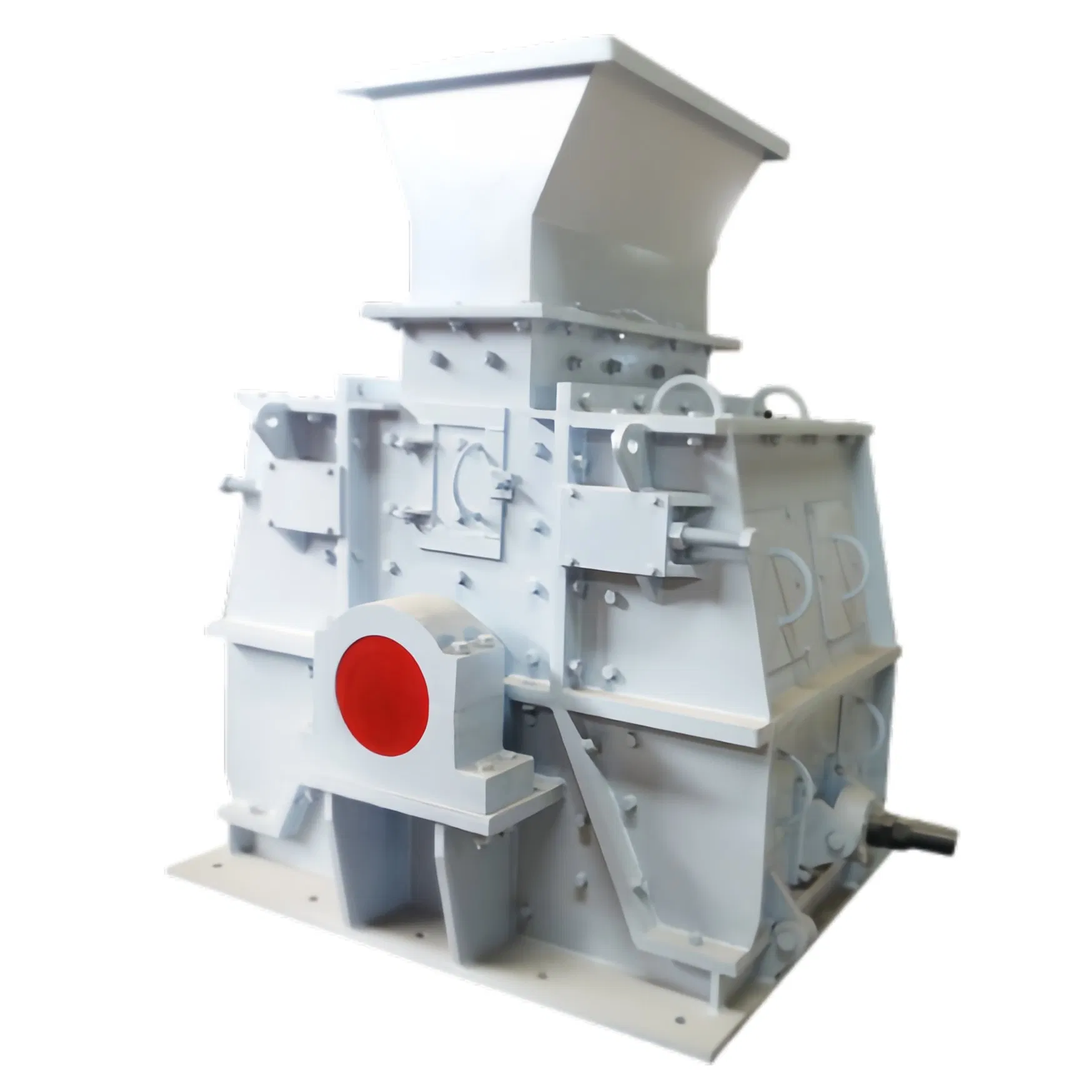

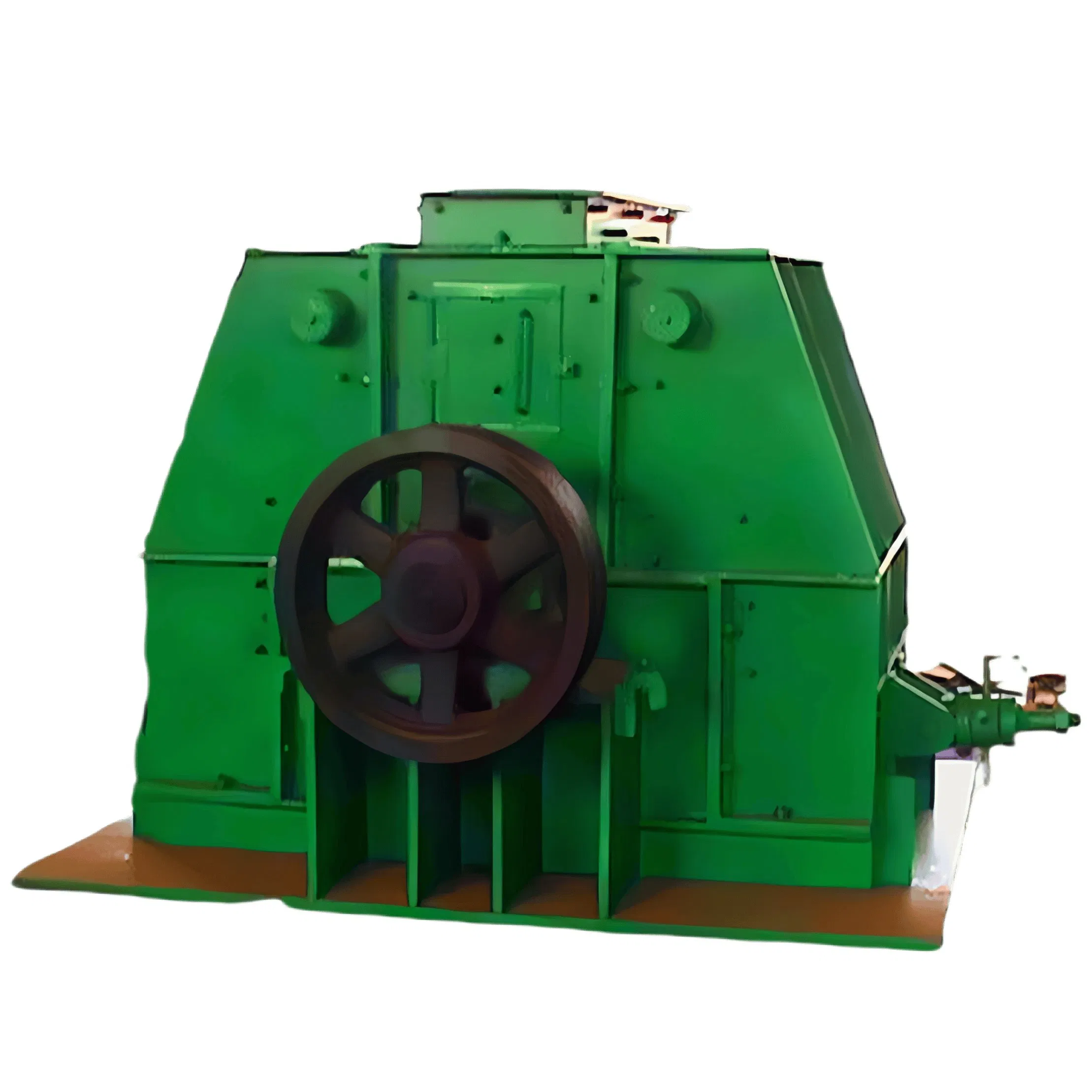

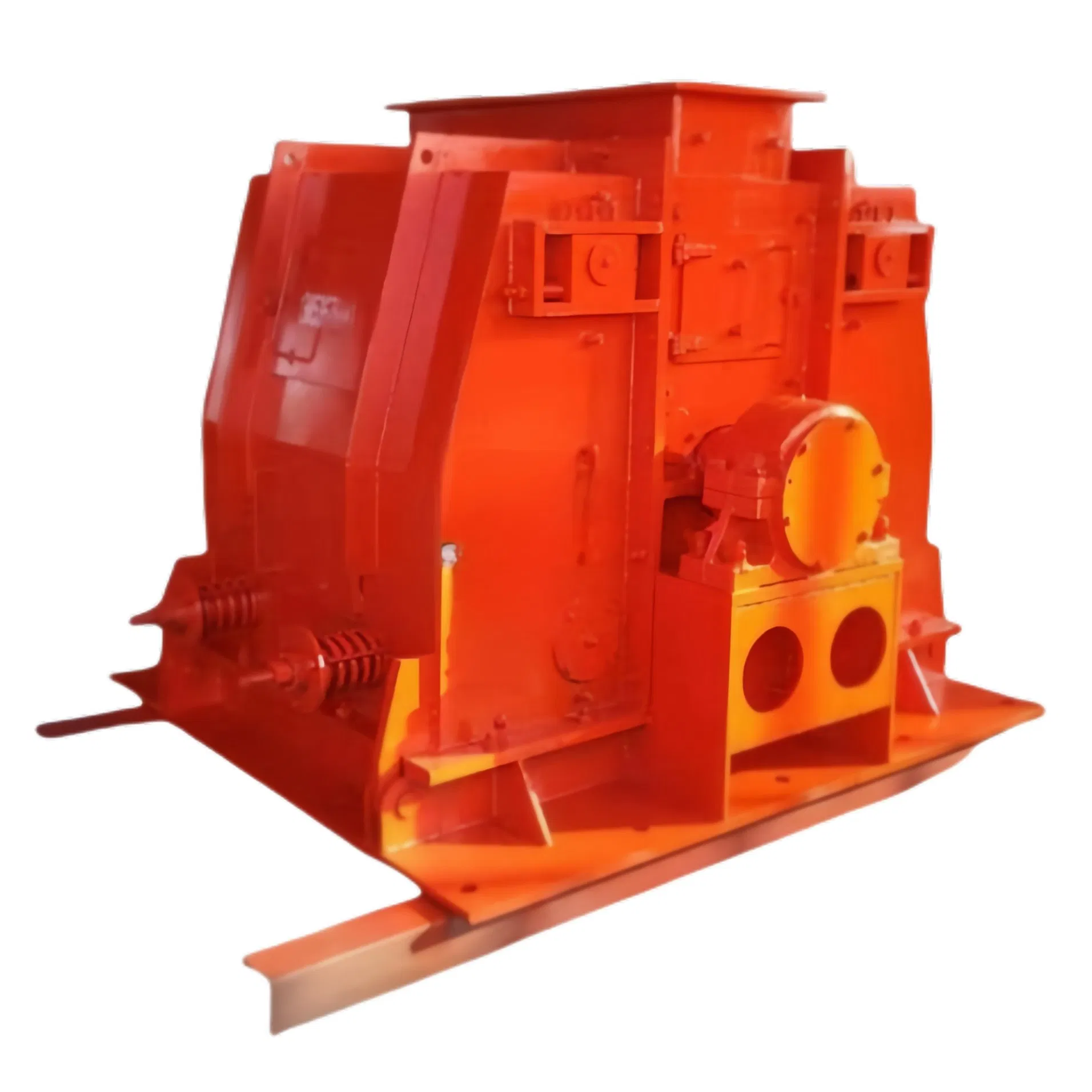

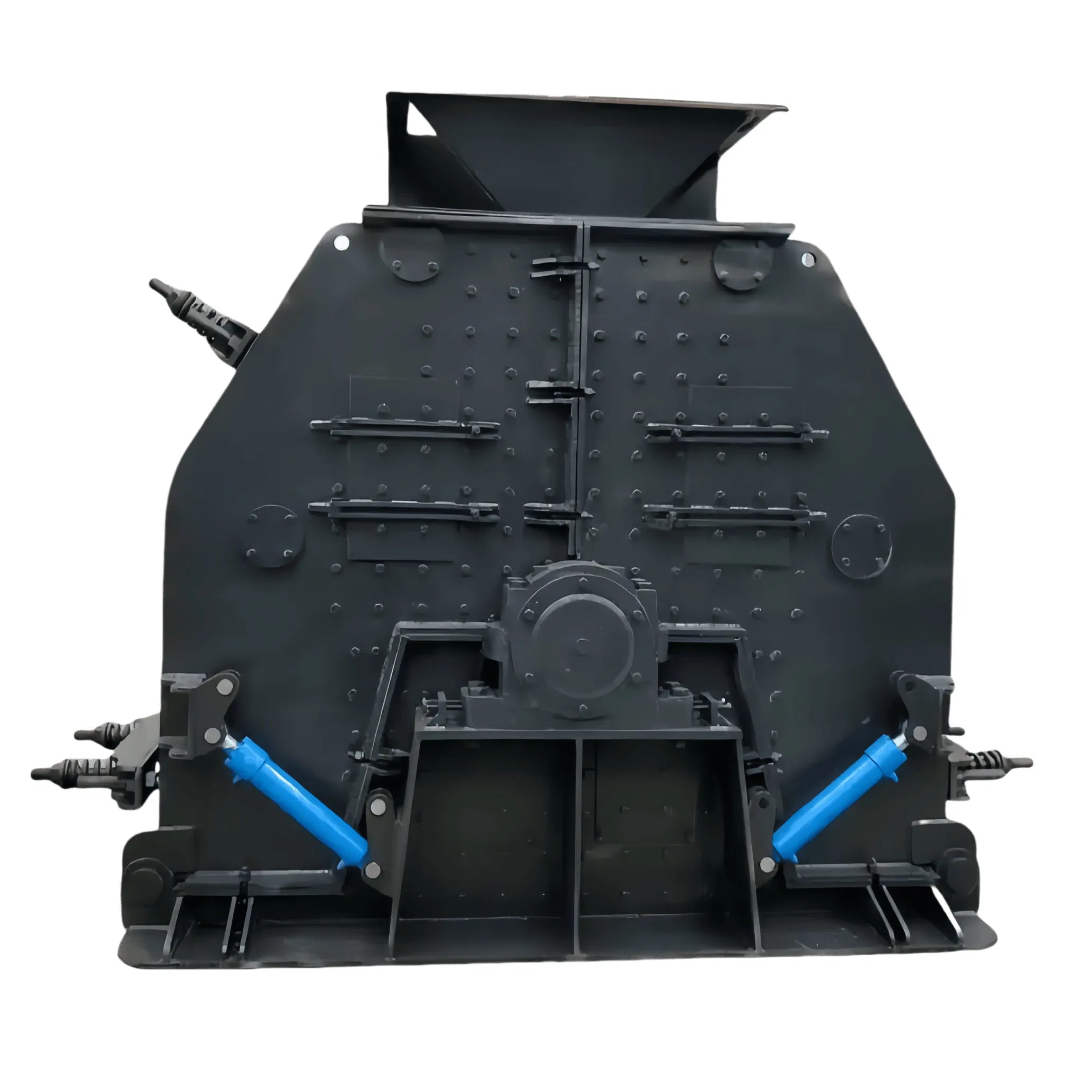

Pcxf0404 High-Efficiency Anti-Block Fine Grinder for Mineral/Mining Processing
Pcxf0404 High-Efficiency Anti-Block Fine Grinder for Mineral/Mining Processing
Pcxf0404 High-Efficiency Anti-Block Fine Grinder for Mineral/Mining Processing
Pcxf0404 High-Efficiency Anti-Block Fine Grinder for Mineral/Mining Processing
Pcxf0404 High-Efficiency Anti-Block Fine Grinder for Mineral/Mining Processing
1 / 5
Pcxf0404 High-Efficiency Anti-Block Fine Grinder for Mineral/Mining Processing
Pcxf0404 High-Efficiency Anti-Block Fine Grinder for Mineral/Mining Processing
Pcxf0404 High-Efficiency Anti-Block Fine Grinder for Mineral/Mining Processing
Pcxf0404 High-Efficiency Anti-Block Fine Grinder for Mineral/Mining Processing
Pcxf0404 High-Efficiency Anti-Block Fine Grinder for Mineral/Mining Processing

Pcxf0404 High-Efficiency Anti-Block Fine Grinder for Mineral/Mining Processing

Customization: Available
Type: Mobile Crusher
Motor Type: AC Motor
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
Pcxf0404
Motor Power
11-22kw
Application
Mine
Materials
Limestone
Outlet Size
60mm
Inlet Size
160*300mm
Capacity
5-18t/H
Rotor Speed
1480 R/Min
Rotor Size
400*400mm
Discharge Size
<8mm
Warranty
1 Year
Package Gross Weight
1120.00kg
★

Product Description

This series of high-efficiency anti-block fine grinder is suitable for crushing medium hardness brittle materials such as coal, limestone, gypsum, rock, phosphate rock, and pebbles. The maximum compressive strength of processed materials does not exceed 150MPa.

  • Anti-Block Design: No screen plate, overcoming material humidity problems and preventing machine blocking.
  • Reversible Rotor: The rotor can rotate positively and negatively, improving hammer utilization and work efficiency.
  • Adjustable Discharge: Discharge port clearance is adjustable, ensuring uniform particles (over 95% of material < 8mm).
  • Extended Durability: Uses heavy hammer technology; hammer life is twice that of standard specifications.
  • Easy Maintenance: Easy to open for inspection and maintenance; reliable shutdown operation.
  • Wide Application: Widely used in steel mills, power plants, cement plants, and mining enterprises.
Anti-Block Fine Grinder Overview
⚙

Technical Parameters

Model Rotor Size (D*L mm) Rotor Speed (r/min) Feed Port (mm) Max Feed (mm) Discharge Size (mm) Capacity (t/h) Power (kw) Weight (kg) Dimension (L*W*H mm)
PCXF0404400*4001480160*30050<85-1811-2211201260*1560*830
PCXF0606600*6001480300*60060<815-2537-5530001438*1770*1100
PCXF0806800*6001480350*80080<825-3545-7545001440*2110*1340
PCXF0808800*8001480350*80080<830-5055-9050001640*2110*1340
PCXF0908900*800980350*800100<835-7075-11064201724*2220*1446
PCXF10101000*1000980400*1000100<840-85110-13282002300*2770*1850
PCXF10121000*1200980400*1200100<850-100132-16098002502*2770*1850
PCXF12121200*1200980400*1200100<870-140185-220131002479*2970*2050
PCXF12161200*1600980400*1600100<8120-220220-315176002839*2970*2050
PCXF14141400*1400740450*1400150<8140-240250-355185002629*3050*2330
PCXF16161600*1600740600*1600150<8200-320355-500273003200*3100*2600
PCXF18181800*1800590700*1800150<8370-400450-710369003500*3300*2800
P

Product Display

Grinder Display 1
Grinder Display 2
Grinder Display 3
Grinder Display 4
Grinder Display 5
Grinder Display 6
Grinder Display 7
Grinder Display 8
Grinder Display 9
Grinder Display 10
Grinder Display 11
Grinder Display 12
Grinder Display 13
Grinder Display 14
Grinder Display 15
Grinder Display 16
Grinder Display 17
?

Frequently Asked Questions

What materials are suitable for this fine grinder?
It is designed for medium-hardness brittle materials such as coal, limestone, gypsum, rock, phosphate rock, and pebbles with a compressive strength under 150MPa.
How does the "anti-block" feature work?
The machine is built without a screen plate, which prevents clogging caused by high material moisture levels, a common issue in traditional crushers.
What is the advantage of the reversible rotor?
The rotor can rotate in both directions. This allows the hammer heads to be used on both sides, significantly increasing their lifespan and improving work efficiency.
Can I adjust the final discharge size?
Yes, the clearance of the discharge port is adjustable. It produces a very uniform output, with more than 95% of the material being smaller than 8mm.
Is the maintenance of the machine difficult?
No, the design allows the machine to be opened easily, making inspections and replacement of wear parts like the heavy hammers simple and fast.
