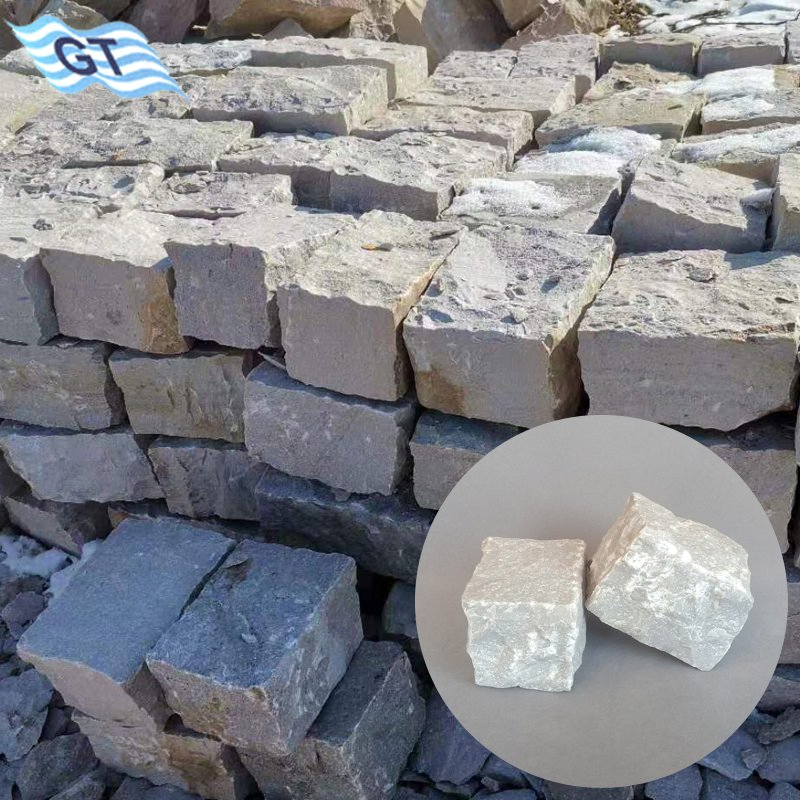

Silex lining bricks (also known as silex blocks or liners) are essential wear-resistant solutions for ball mill applications. We offer various processing methods to suit specific industrial requirements.

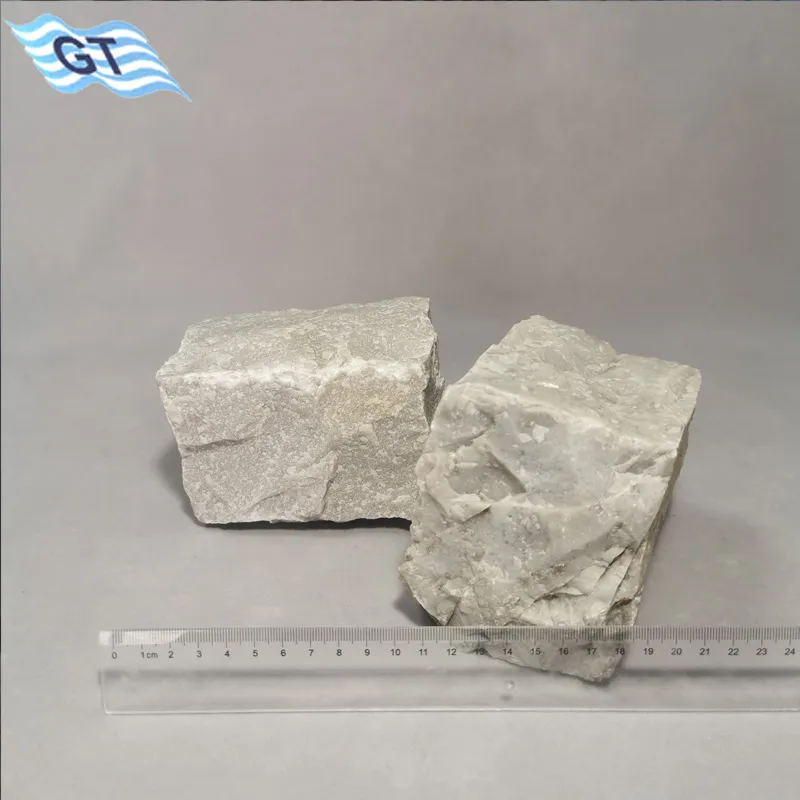

Manual Cutting

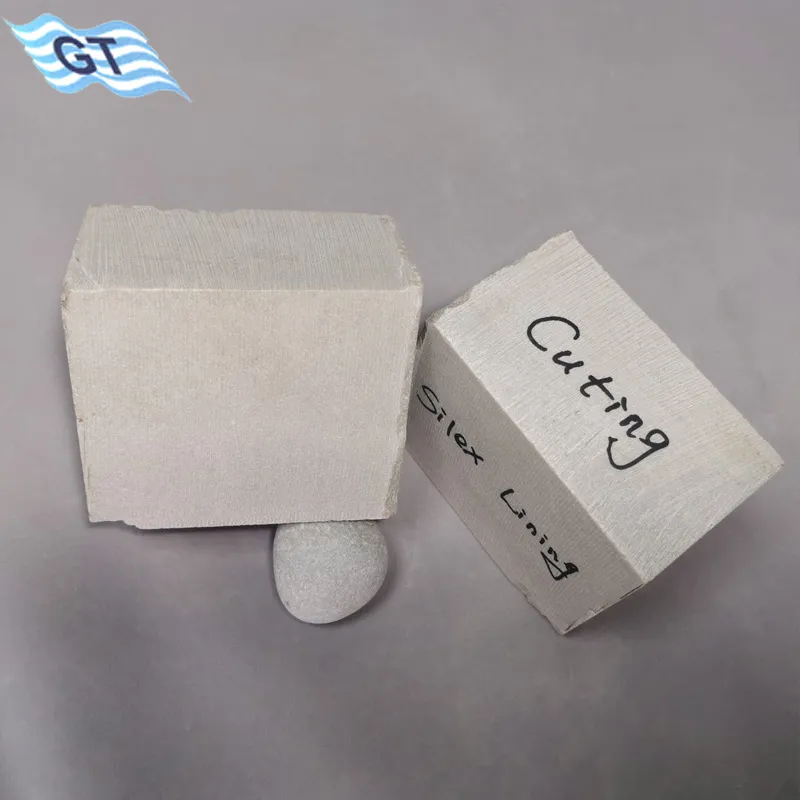

Machine Cutting
| Lining Type | Description |

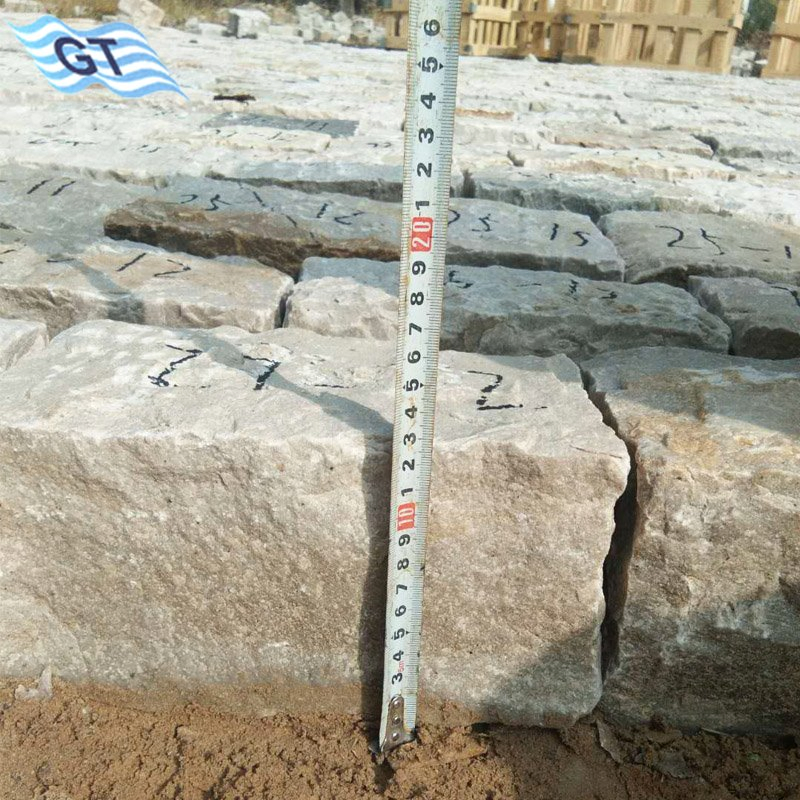

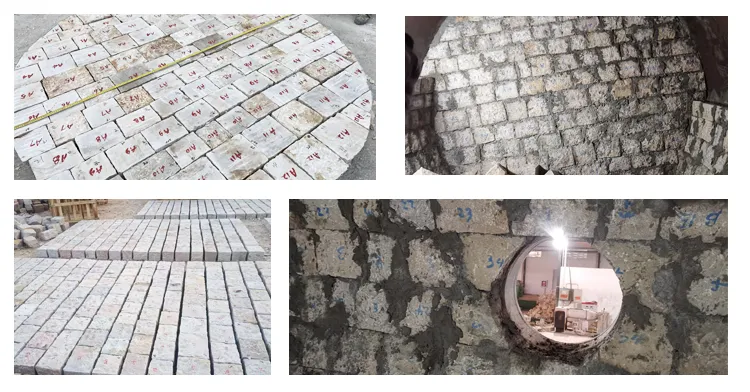

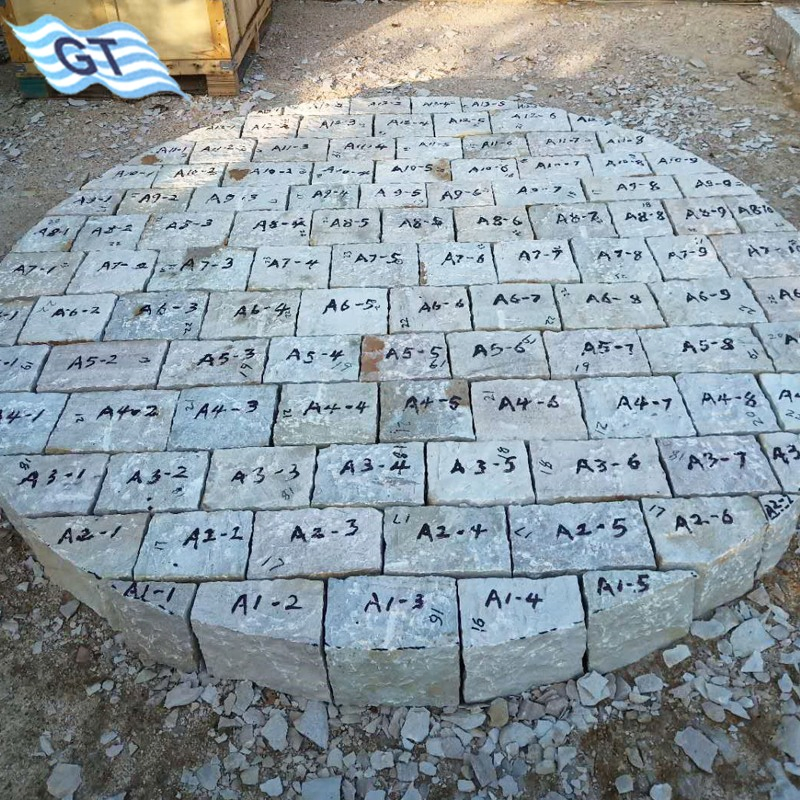

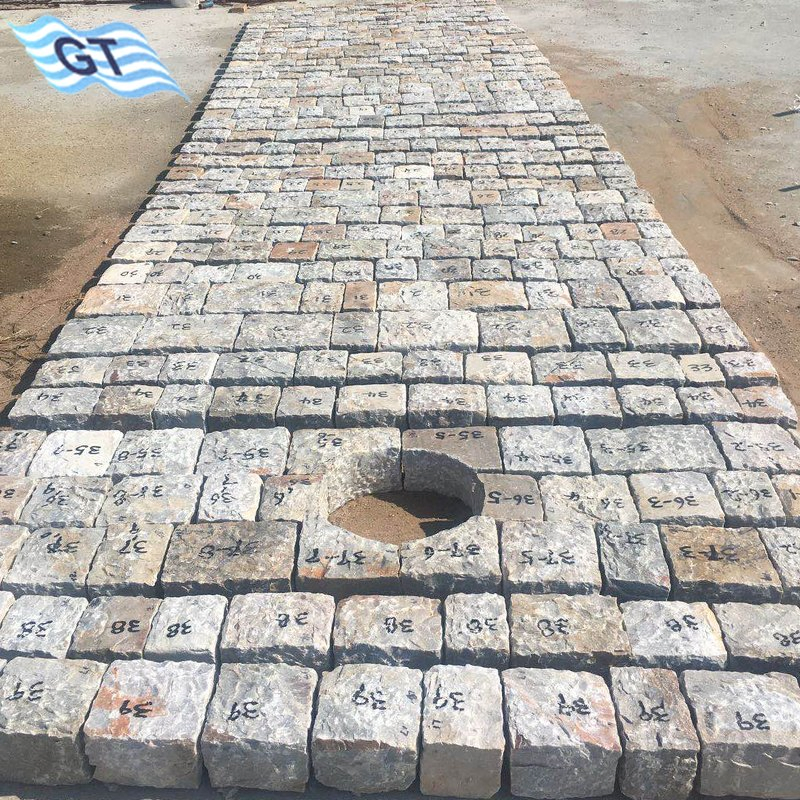

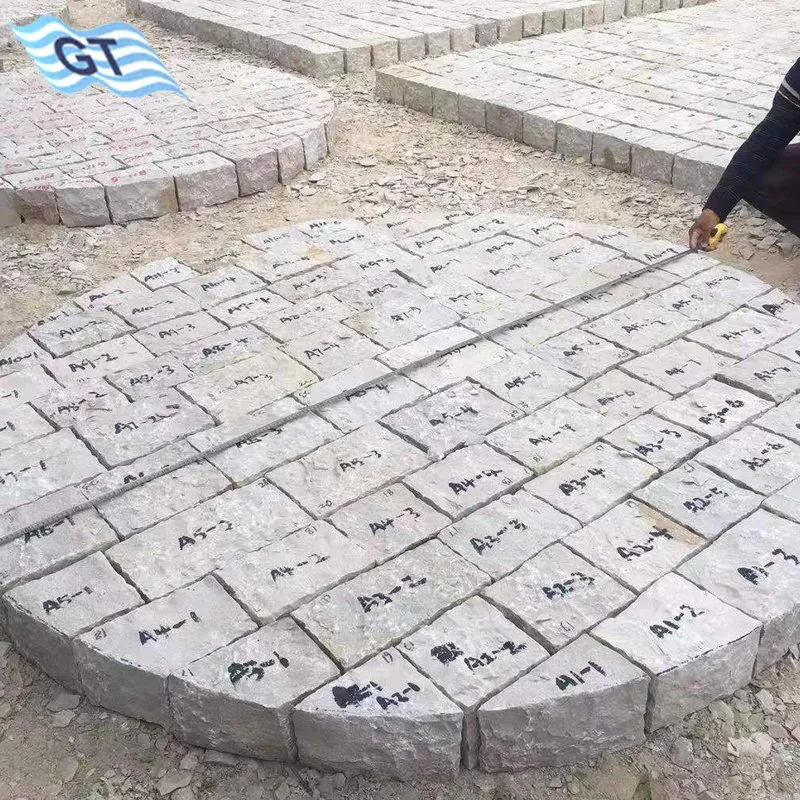

| Finished Linings | Processed according to ball mill size (body and side wall blocks). Marked with numbers for direct, easy installation. |

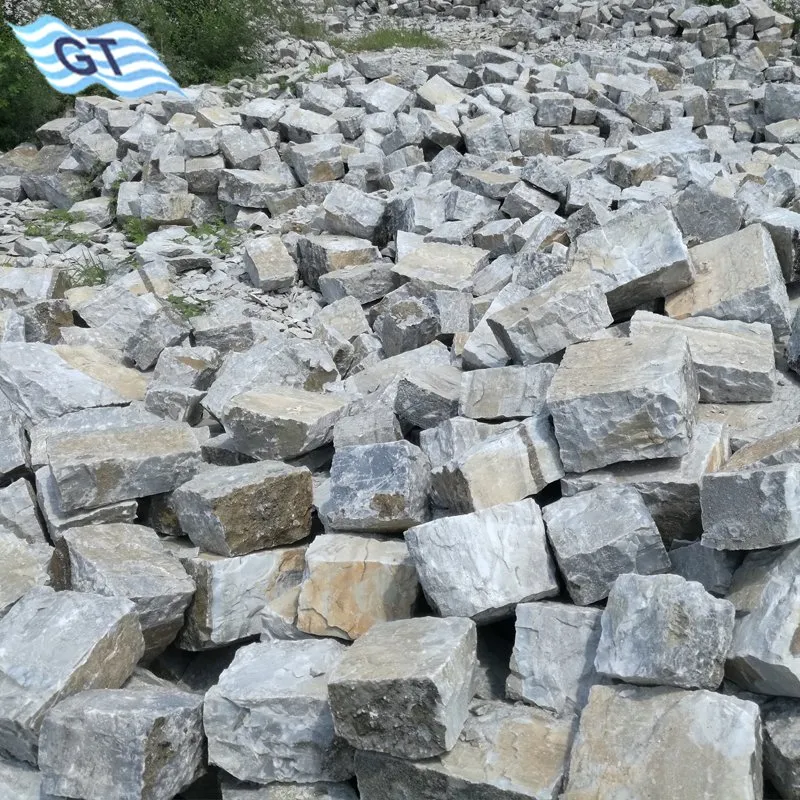

| Preformed Linings | Standard size range (L: 20-35cm, W: 15-22cm, T: 13-14cm). Requires processing before installation; more cost-effective. |
| Dimension | Body (Cylinder) | Sidewall (End Surface) |
|---|---|---|
| Length | 200-400mm | 200-400mm |
| Width | 150-250mm | 150-250mm |
| Thickness | 110-200mm | 110-200mm |
Specifically designed as inner lining for ball milling in the production of industrial raw materials, glass, porcelain, ceramic processing, and alumina fine powder grinding. Suitable for pot milling, continuous ball mills, and batch ball mills.

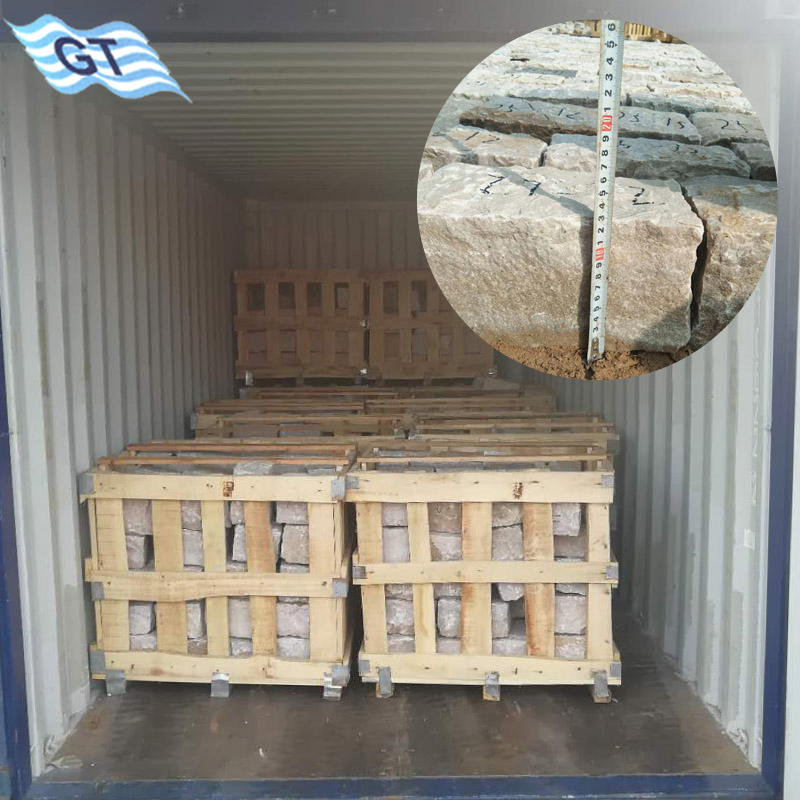

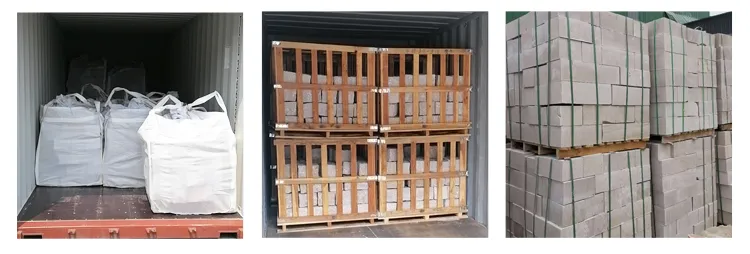

| Package Types | Bags (100x100x100cm), Pallets (100x100cm), or Wooden Cases |
| Weight Info | 1000-1300kg per bag; 25-27 tons per 20'FCL |
| Customization | Marks and labels are fully customizable |
