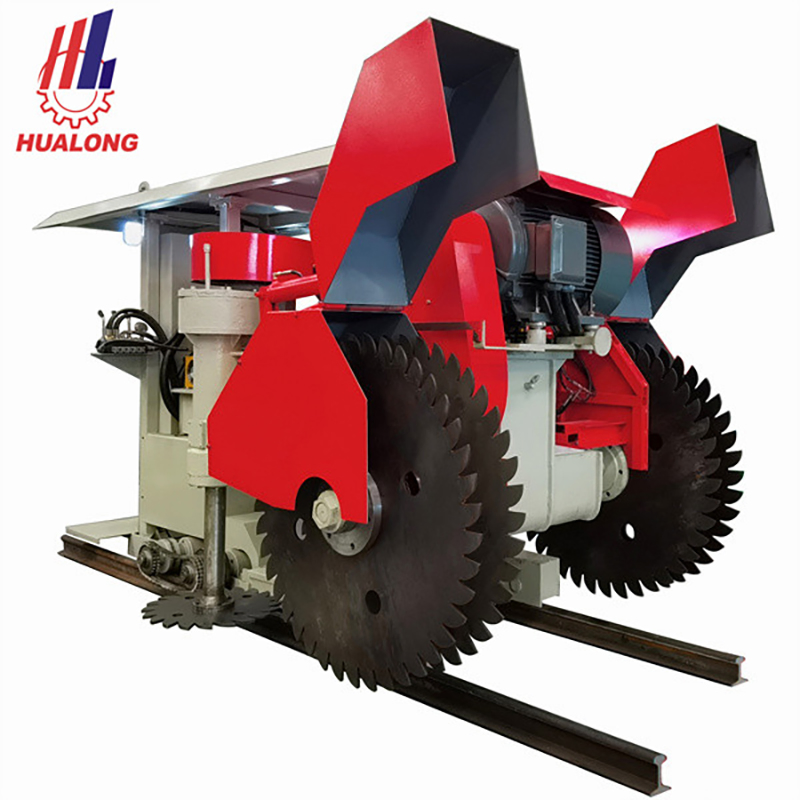

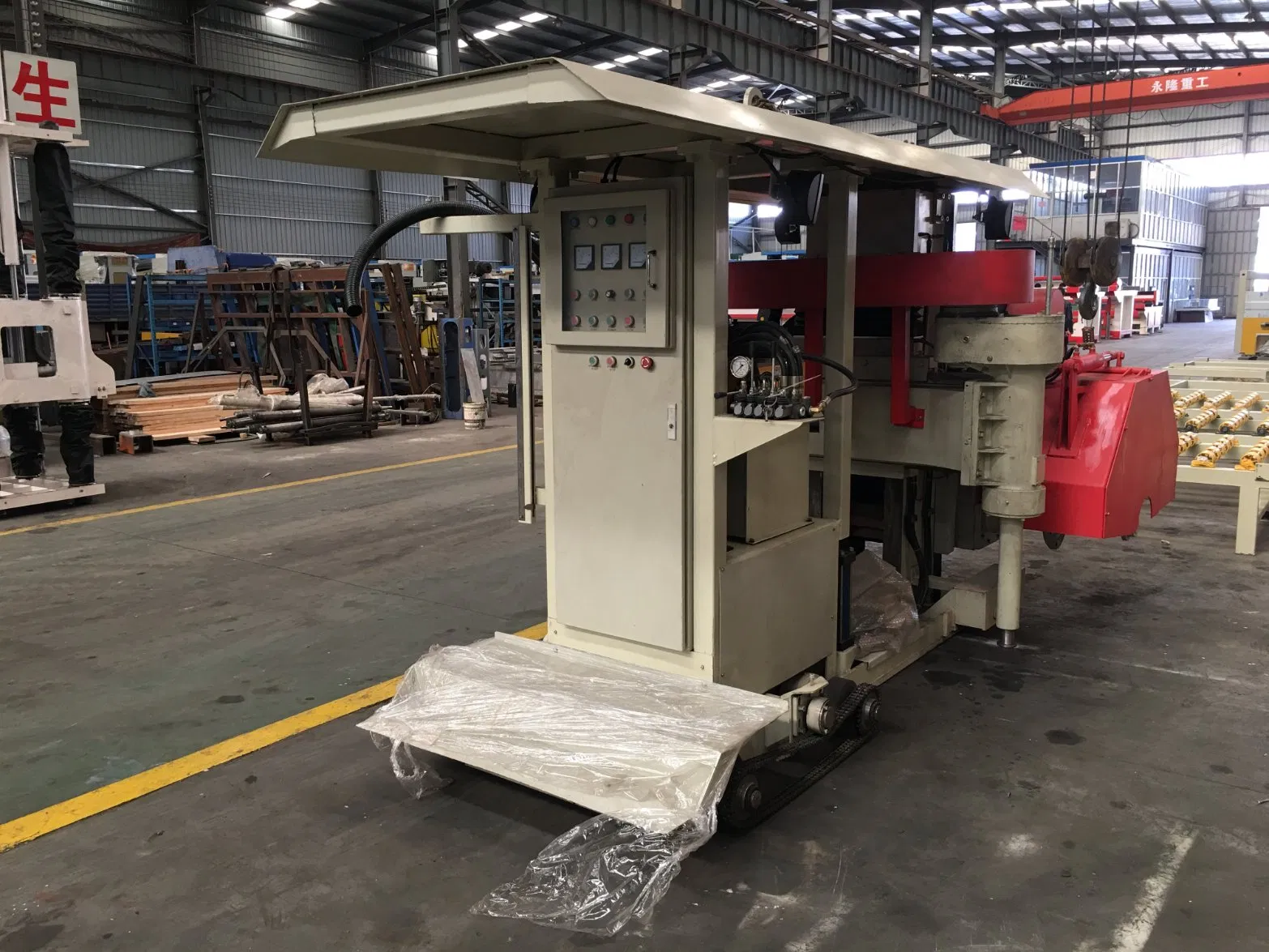

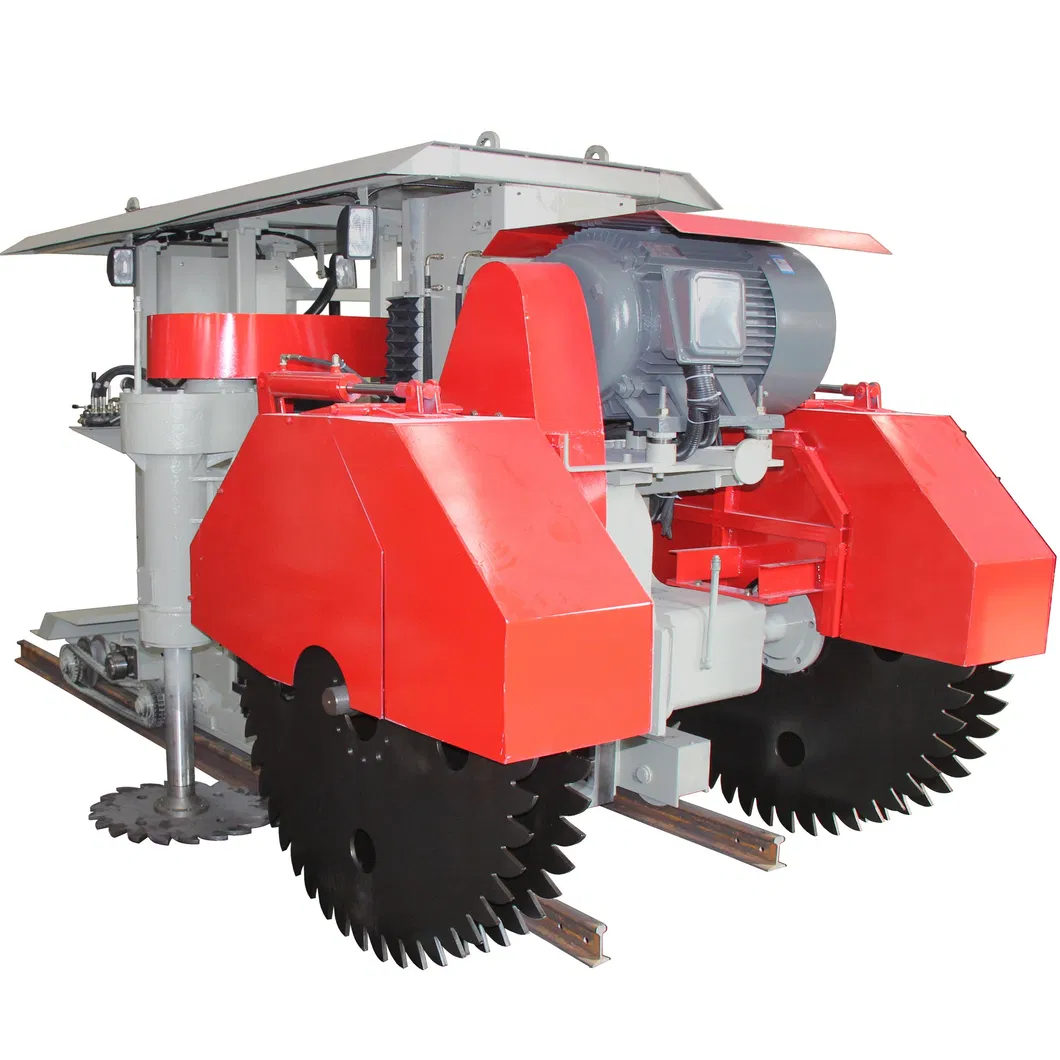

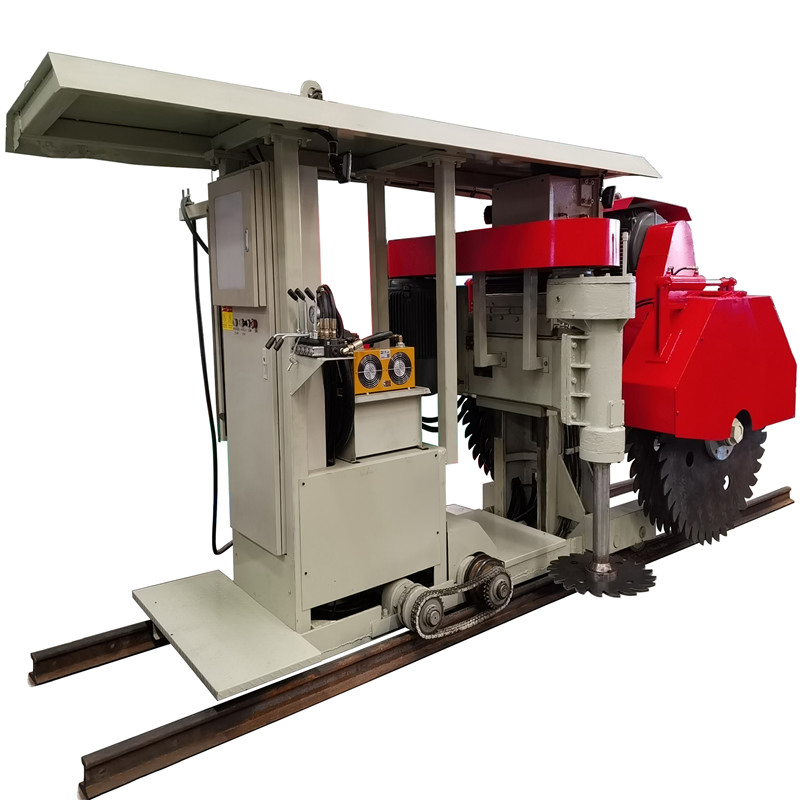

HKSS-1400 Professional Brick Cutting Machine

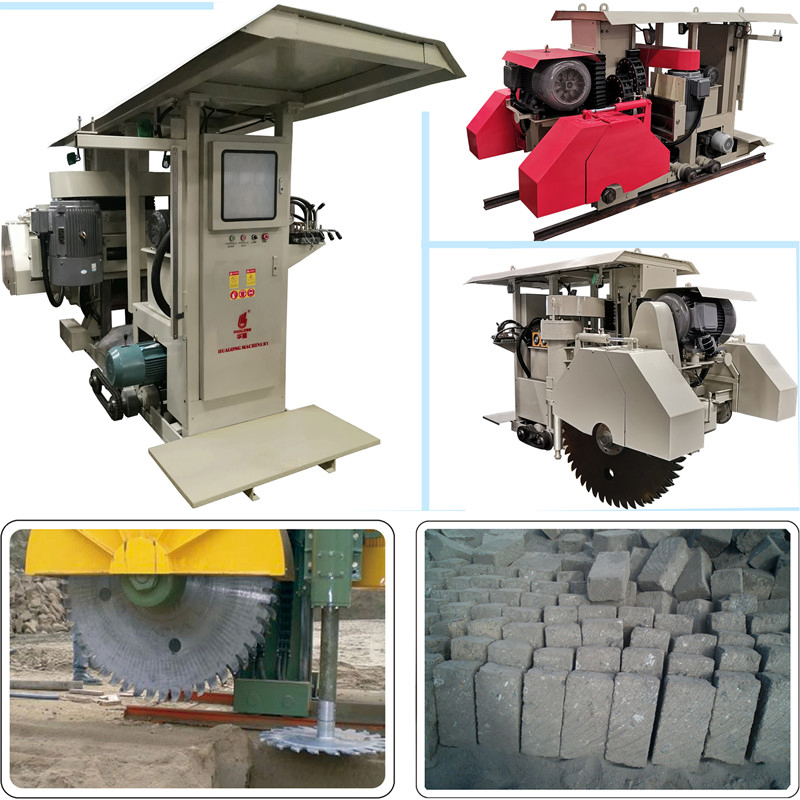

This equipment features vertical and horizontal blades, ideal for cutting limestone, sandstone, tufa, volcanic, and calcareous stone blocks. These processed blocks are perfectly sized for direct use in the construction industry.
| Description | Unit | Specification | |
|---|---|---|---|
| Motor Power | Vertical | kw | 75 |
| Horizontal | kw | 45 | |
| Rail | kw | 5.5 | |
| Performance | Moving speed | m/min | 10-45 |
| Cylinder Lifting | mm | 700 | |
| Max Cutting Depth | mm | 520 | |
| Dimensions | L*W*H | mm | 4835*2450*2900 |

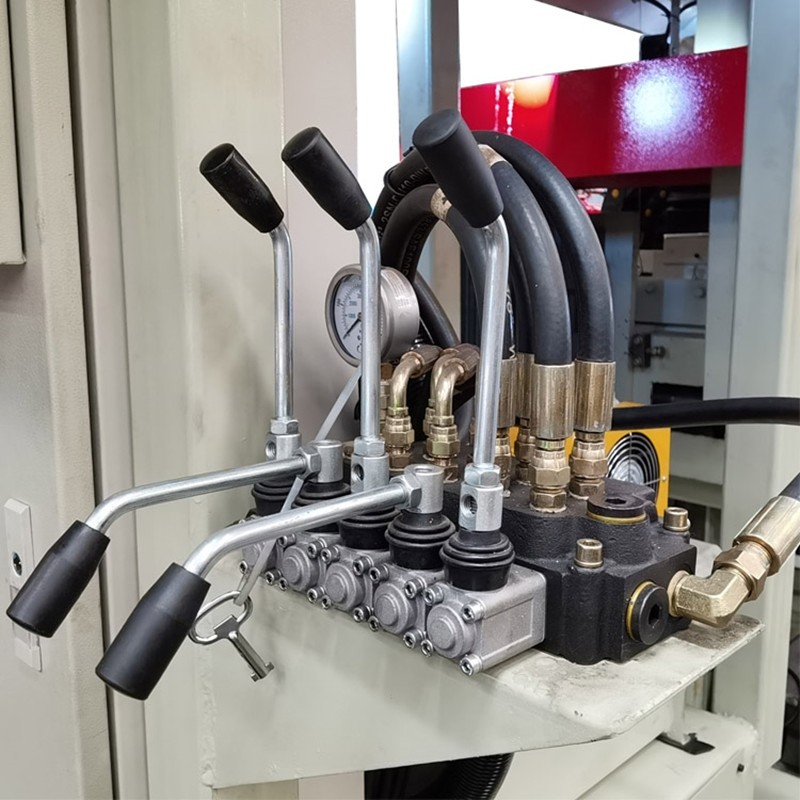

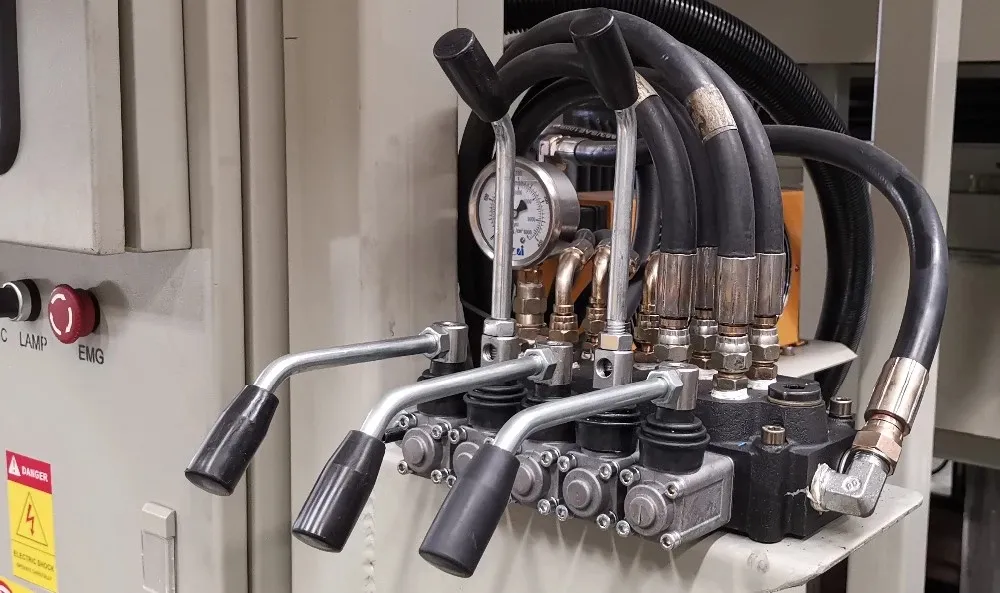

Control System: Joystick-based control (5 pcs) for simple movement of the machine, spindle, and blade cover.

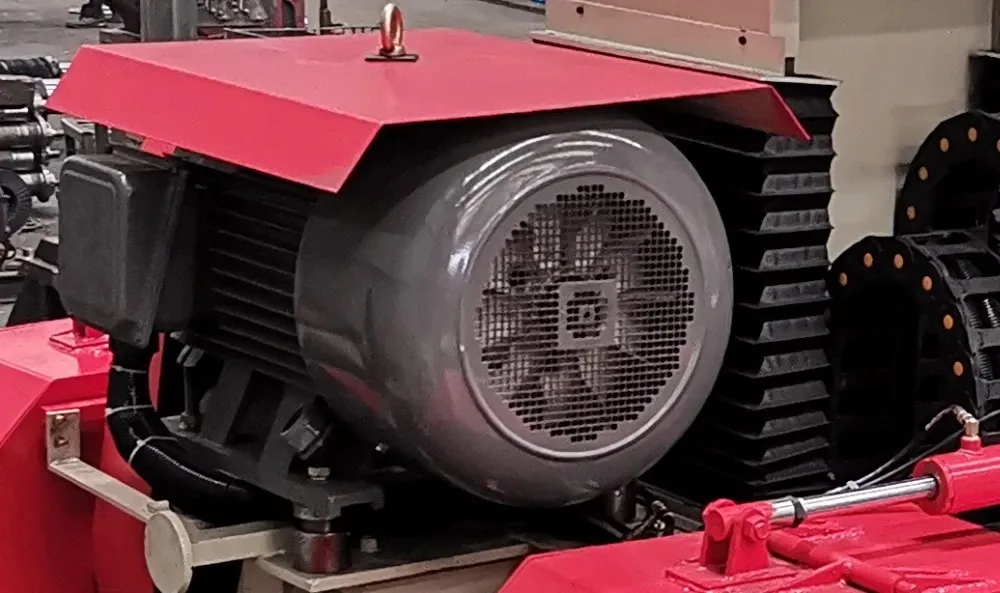

Main Motor: High-efficiency (93.1%) three-phase asynchronous motor providing strong driving force.

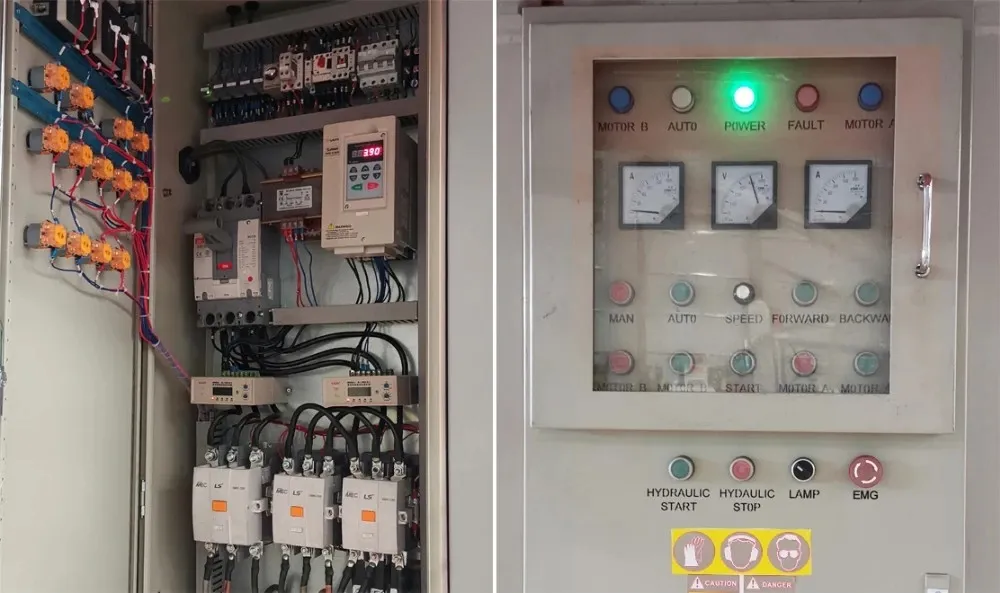

Electrical Panel: Components from Schneider, MEC, C-Lin with CE certification.
Blades are crafted from Q460c manganese steel with specialized heat treatment (Hardness up to HR 52). Cutter heads utilize cemented carbide for superior wear, heat, and corrosion resistance.
