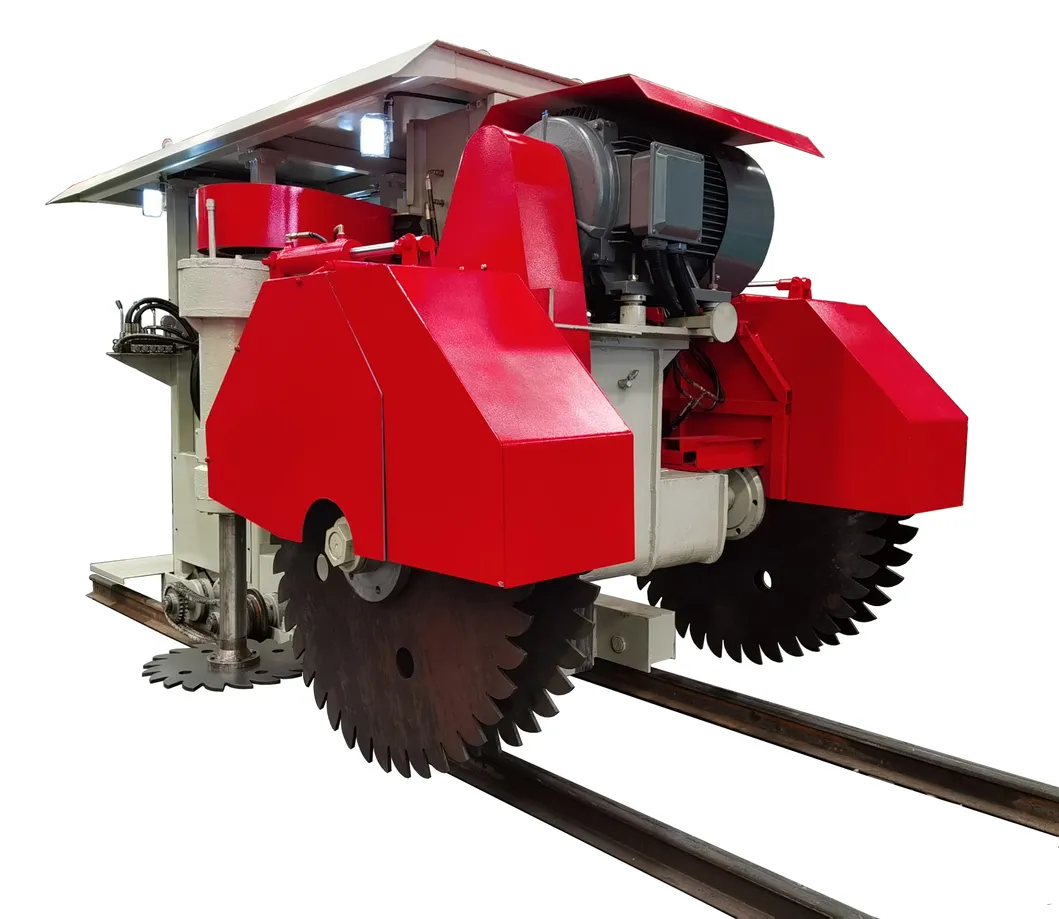

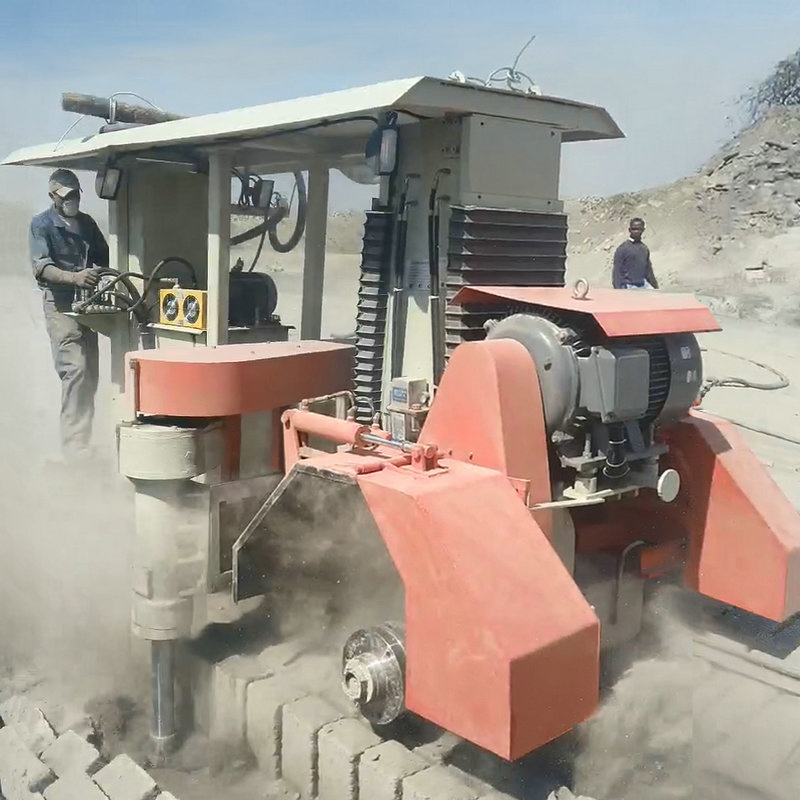

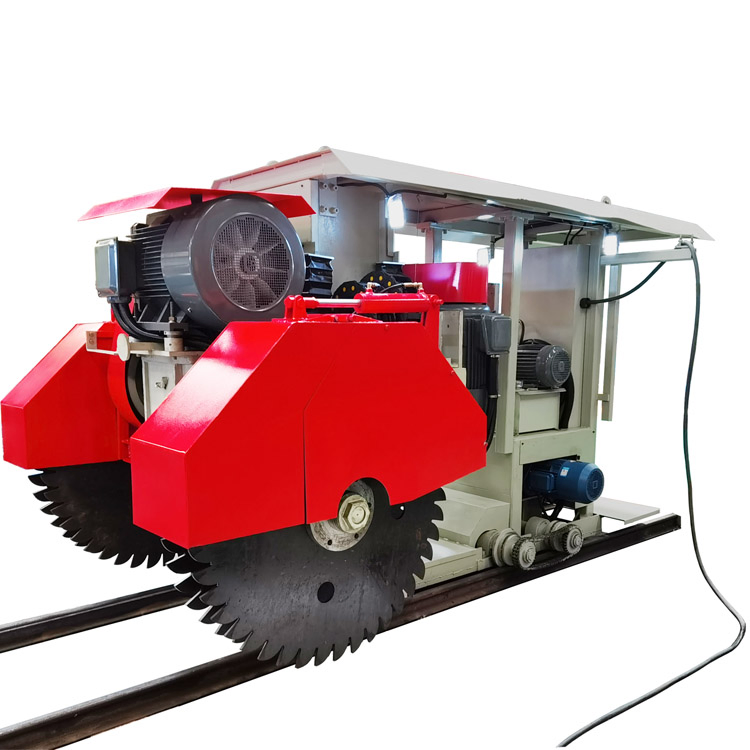

The Sandstone Quarry Cutting Machine HKSS-1400 is a specialized solution designed for mining sandstone, limestone, and laterite. This robust machinery efficiently cuts raw stone into precise blocks suitable for building and construction projects.
| Parameter Item | Unit | Technical Specifications | |
|---|---|---|---|
| Power of Motor | Vertical | kw | 75 |
| Horizontal | kw | 45 | |
| Rail | kw | 5.5 | |
| Main Performance | Moving speed (forward/backward) | m/min | 10-45 |
| Max. distance of cylinder lifting | mm | 700 | |
| Max. cutting depth | mm | 520 | |
| Blade Details | Diameter of the vertical | mm | 1330 |
| Diameter of the horizontal | mm | 600 | |
| Thickness | mm | 11.5 | |
| Dimensions | L*W*H | mm | 4835*2450*2900 |

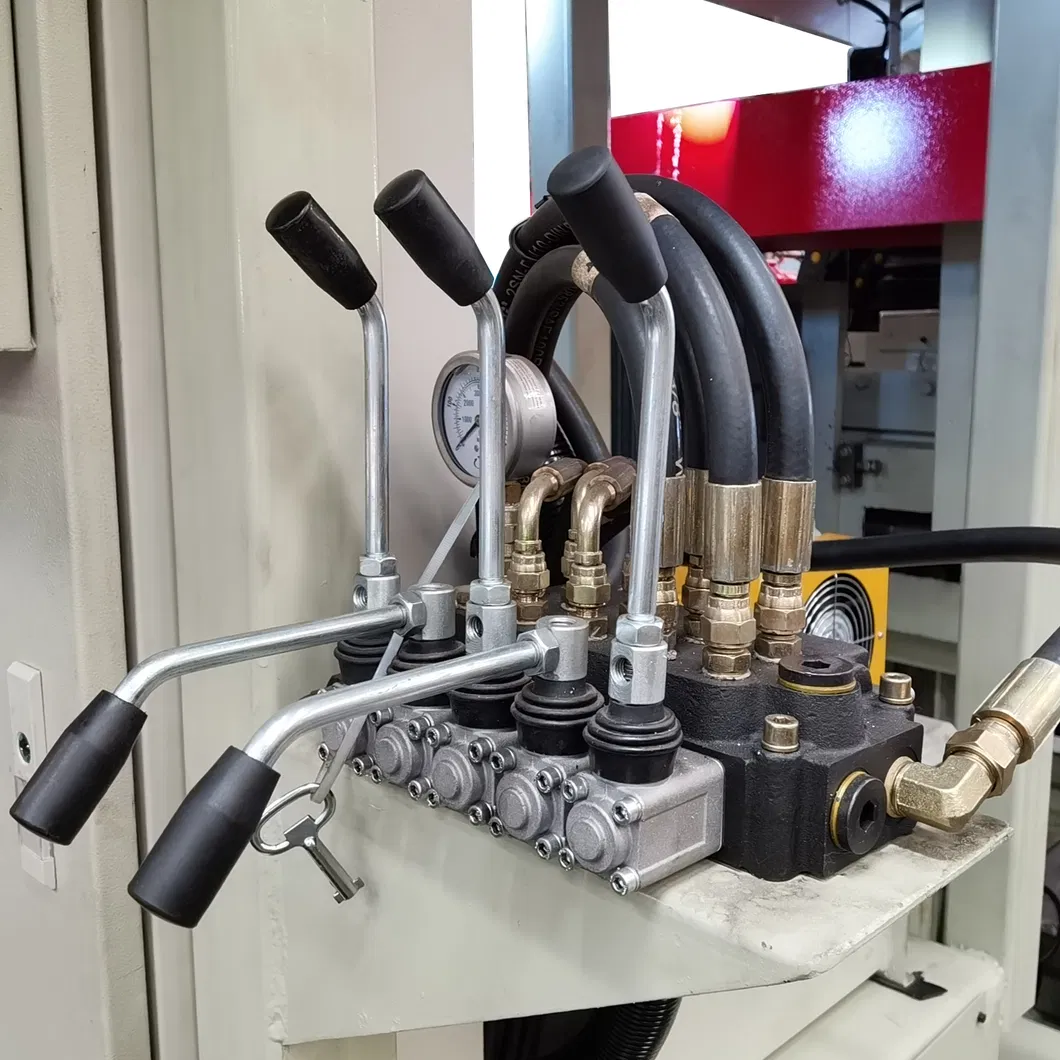

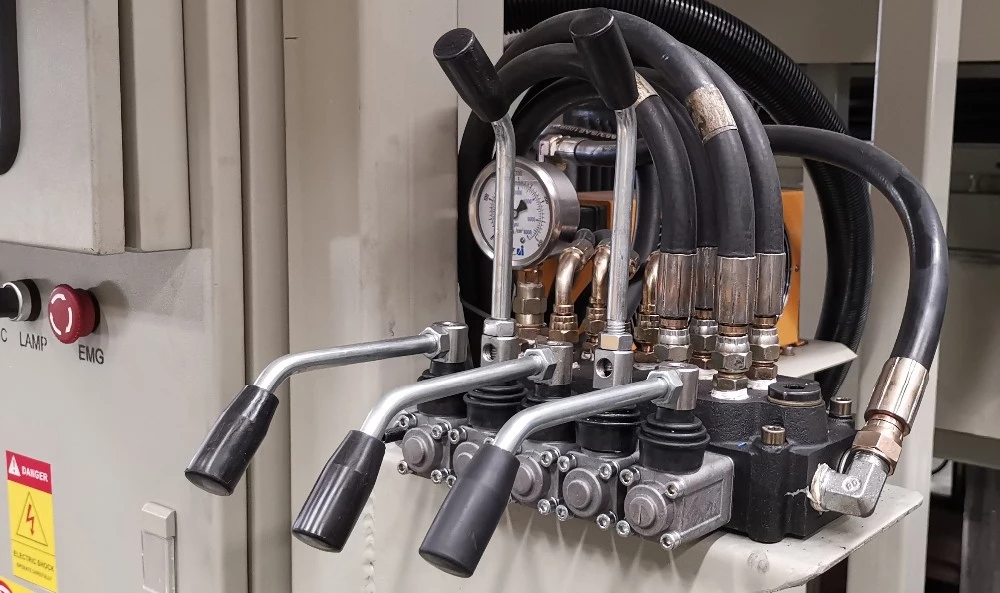

Control Component: Precise joystick control for machine movement and blade positioning.

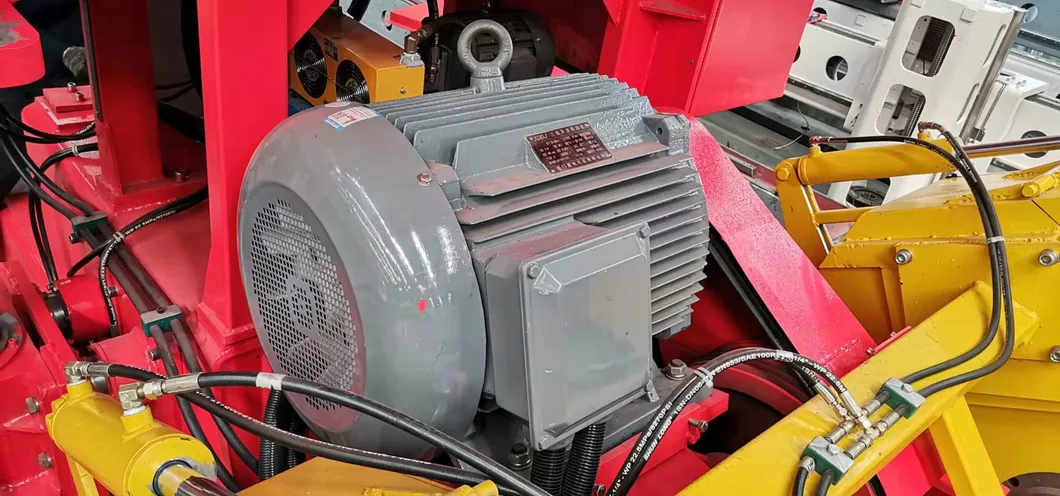

Main Motor: Three-phase asynchronous motor with 93.1% efficiency.

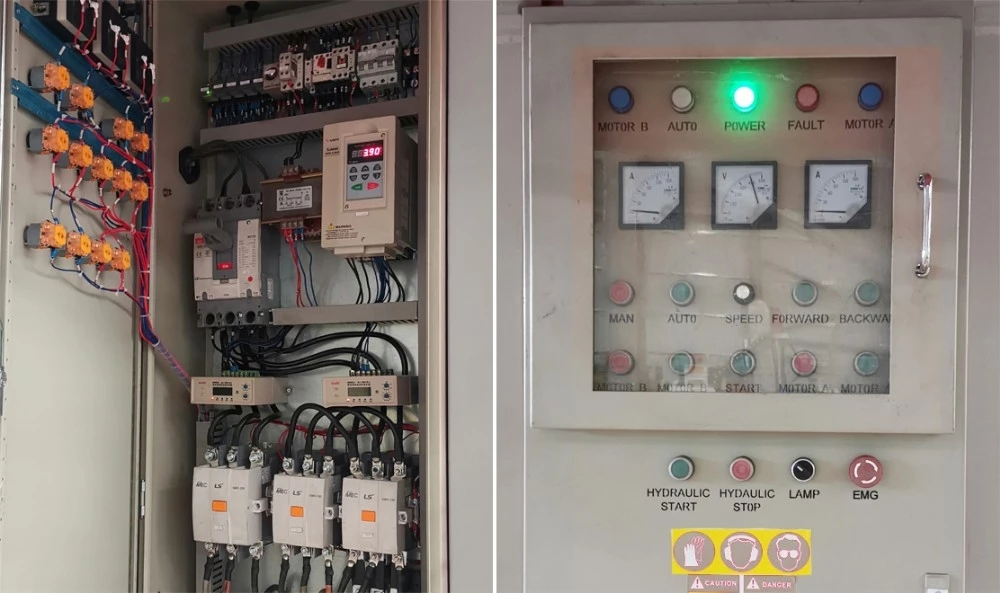

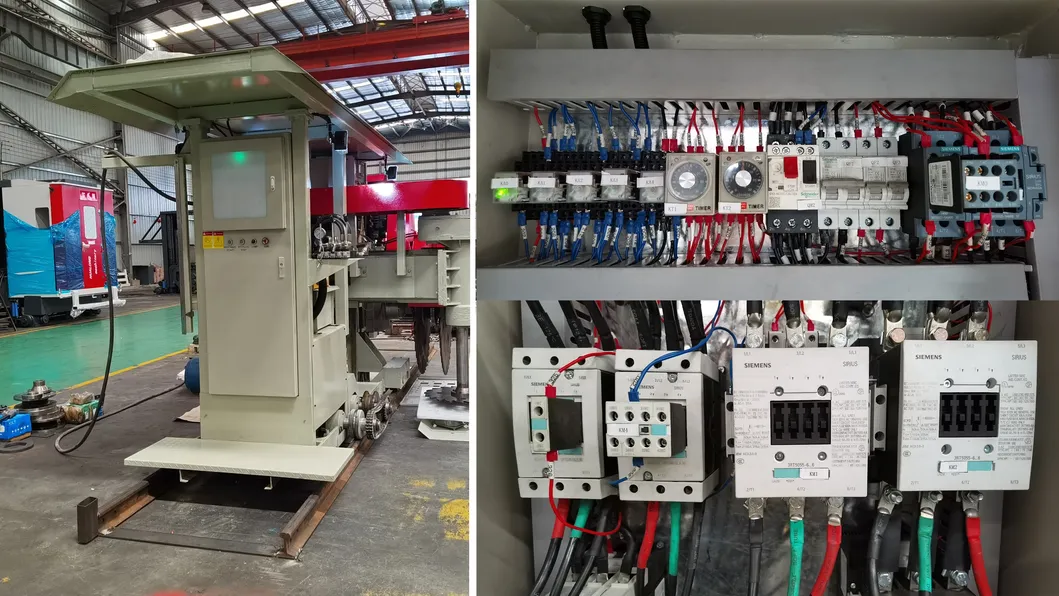

Operation Panel: High-quality components certified by CE.

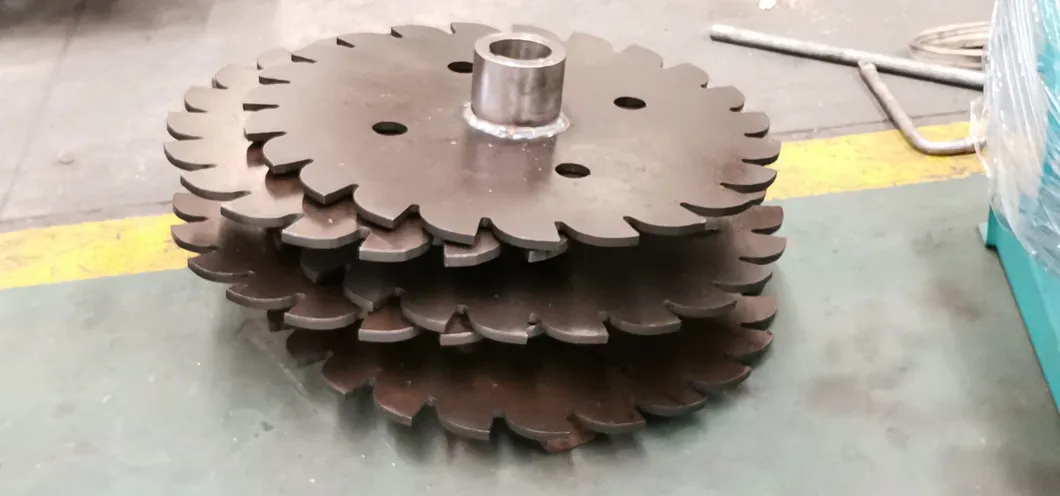

Blades: Heat-treated manganese steel with carbide tips for long life.

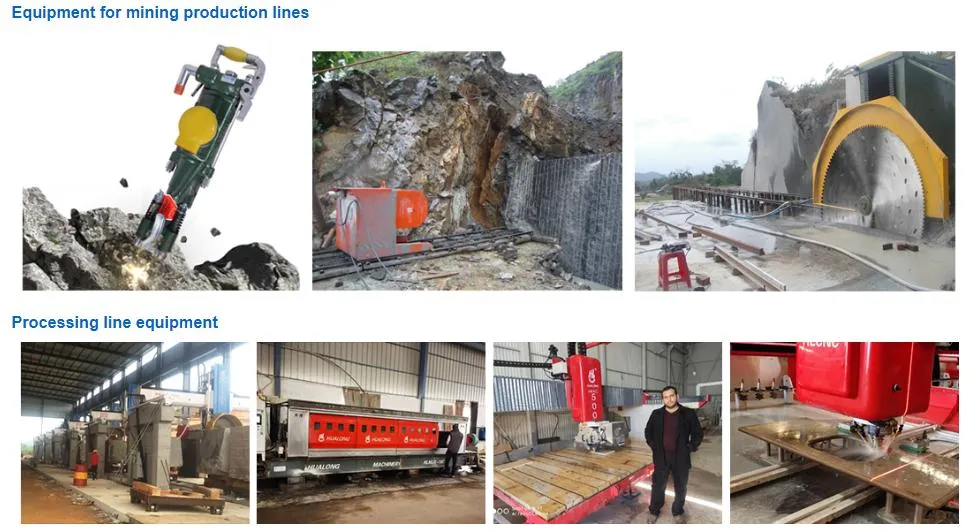

Processing Line: Complete equipment for building block production.

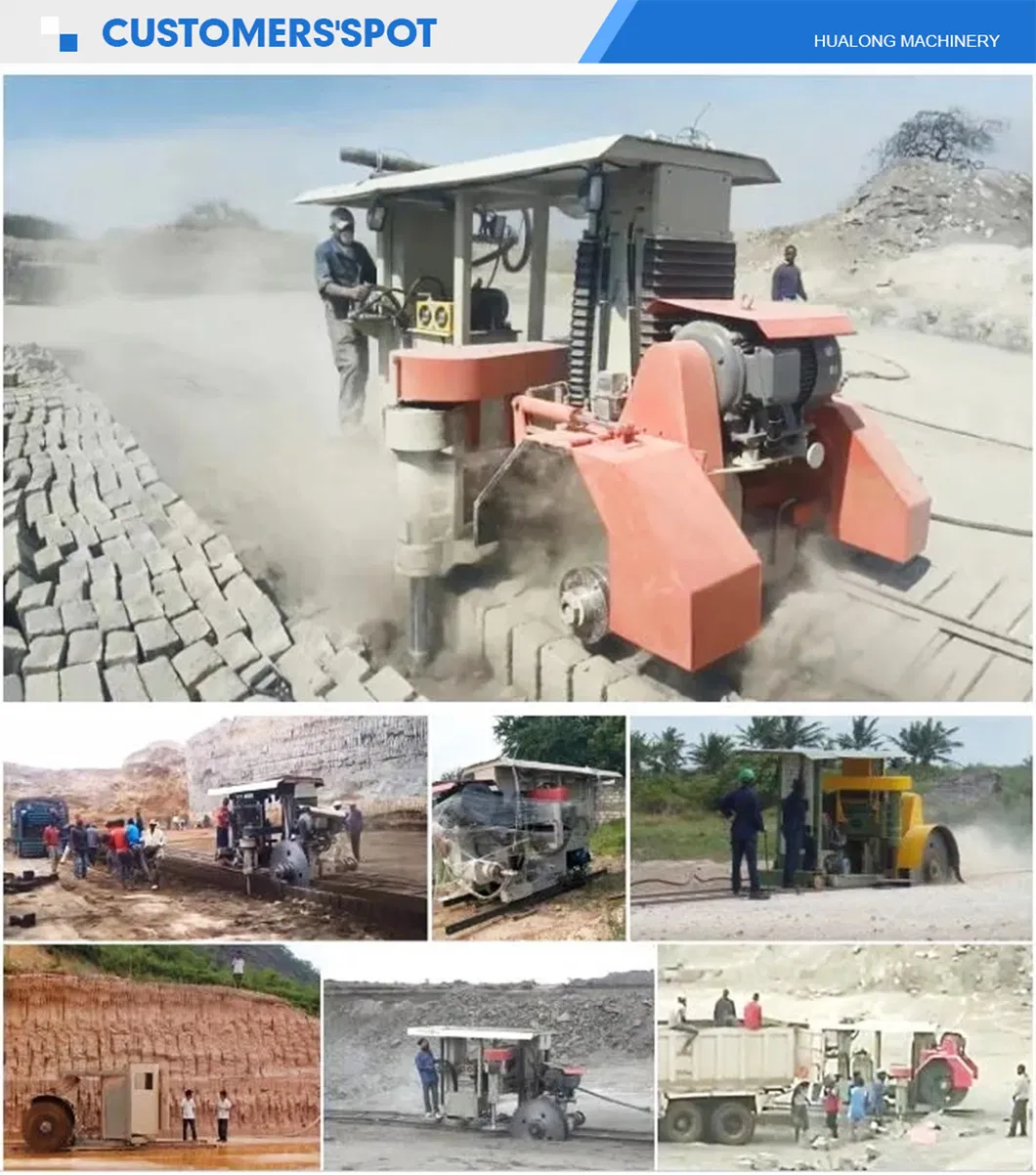

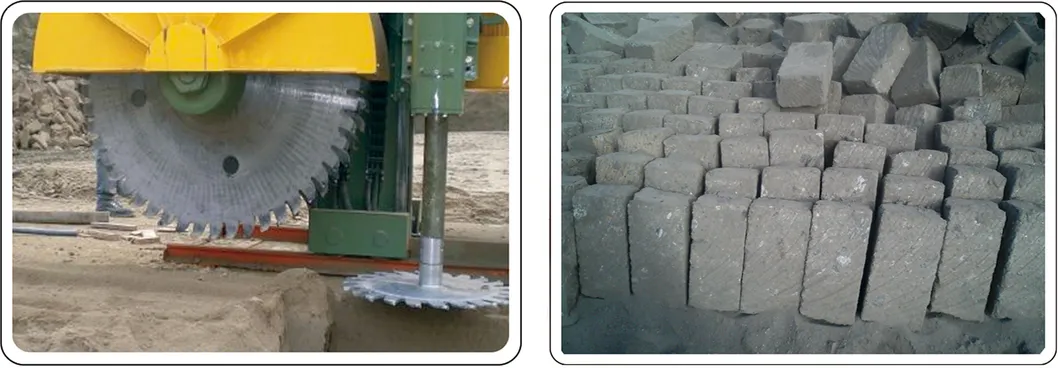

Application: Optimized for on-site quarry mining operations.
